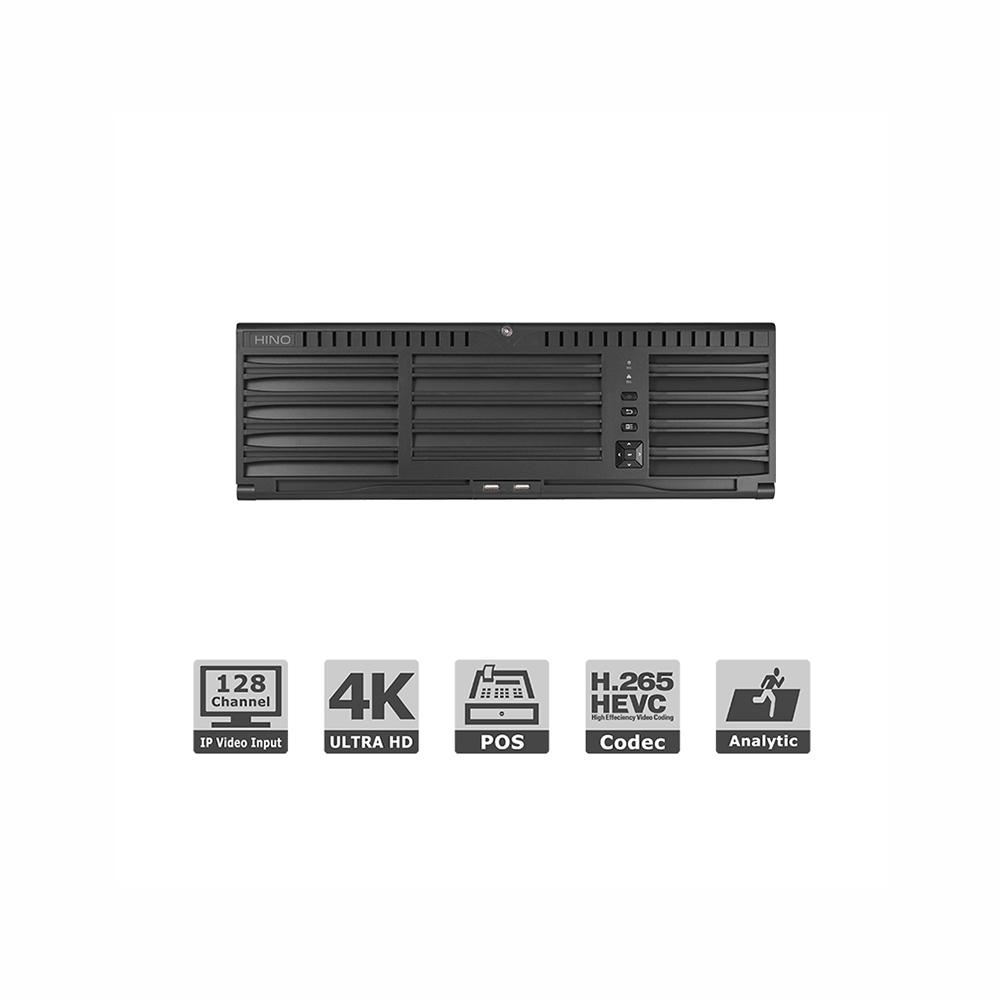

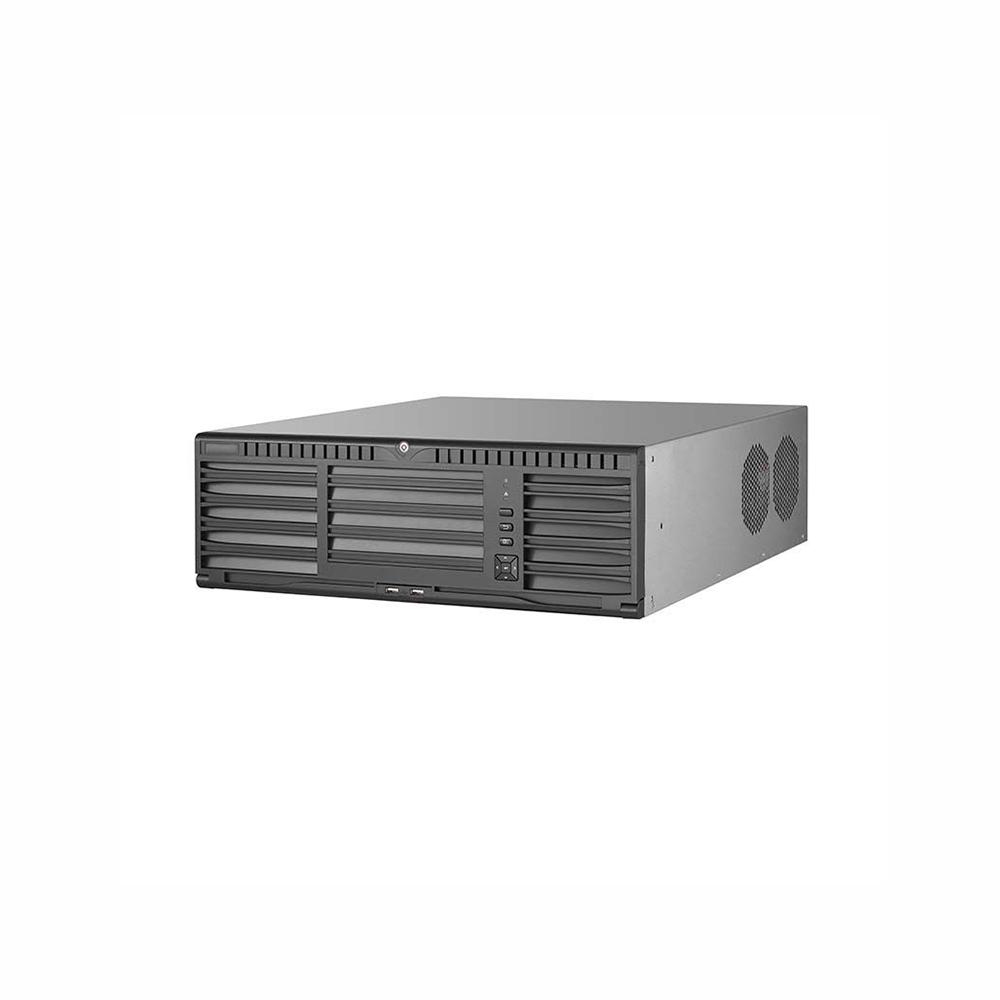

Guarding Vision 128ch Enterprise NVR, Max. 16 HDDs.
$2,799.00 USD
Couldn't load pickup availability
- Support 12MP/ 4K resolution
- 128-ch network camera inputs
- 576Mbps incoming bandwidth
- 20-ch@1080P decoding
- Support alarm I/O
- Support 16 SATA with 8TB HDD for each
- Support Point-of-Sales (PoS) integration
- Support RAID 0,1,5,6,10
- Up to 4 Gigabit network interfaces
- Hikvision OEM
| Video/Audio Input | |
| IP video input | 128-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 576Mbps |
| Outgoing bandwidth | 512Mbps |
| Remote connection | 256 |
| Video/Audio Output | |
| HDMI/VGA output | 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (2.0Vp-p, 1KΩ) |
| VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 20-ch@1080P |
| Hard Disk | |
| SATA | 16 SATA interfaces for 16 HDDs |
| Interface Type | 1 eSATA interface |
| Capacity | Up to 8TB capacity for each HDD |
| Disk array | |
| Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Number of array | 8 |
| External Interface | |
| Optic fiber interface | 4 1000 Mbps optional optic fiber interfaces |
| Network Interface | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface | RS-232, RS-485, Keyboard |
| USB Interface | Front panel: 2 x USB 2.0, Rear panel: 2 x USB 3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| General | |
| Power Supply | 100 to 240 VAC, 550W |
| Consumption | ≤ 140W |
| Working Temperature | +32ºF ~ +122ºF |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 3U chassis |
| Dimensions | 17.4 × 19.4×5.7 inch |
| Weight(without HDD) | 35.3 lbs |
This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.
