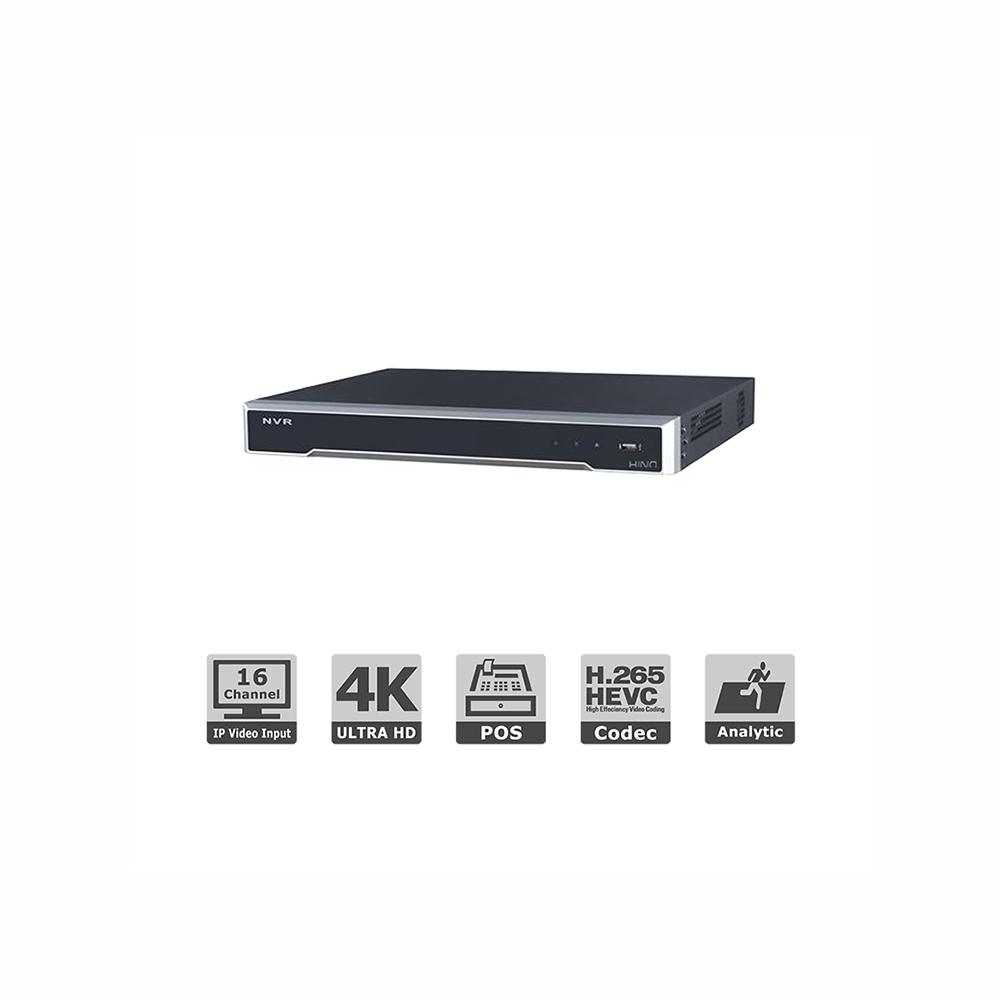

$499.00 USD

  • Support 4K display
  • 16-ch IP cameras input, max 12MP resolution
  • 160Mbps incoming bandwidth
  • 16-ch@1080P 30fps decoding capability
  • Support alarm I/O
  • Support 2 SATA with 6TB HDD for each
  • Support Point-of-Sales (PoS) integration
  • Support 16 independent POE network interfaces
  • Hikvision OEM
Video/Audio Input
IP video input 16-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 160Mbps
Outgoing bandwidth 256Mpbs
Remote connection 128
Video/Audio Output
HDMI Output 1-ch, resolution: 4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback 16-ch
VGA Output 1-ch, resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Decoding
Live view / Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 4-ch@4K, 16-ch@1080P
Hard Disk
SATA 2 SATA interfaces for 4HDDs
Capacity Up to 6TB capacity for each HDD
External Interface
Network Interface 1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Alarm In 4-ch
Alarm Out 1-ch
POE
Interface 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power 200W
Supported Standard IEEE 802.3 af/at
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE) Less than 15 W
Working Temperature +14 ºF to + 131 ºF
Working Humidity 10 % to 90 %
Chassis: 15.2 Inch
Dimensions 15.2" x 12.4" x 2.0"
Weight(without HDD) 6.6 lbs
Qty available: 9 SKU:DS-7616NI-I2/16P
