2-Port UPS POE Switch Provides 24V/48V POE and 12V/24V/48V DC Output

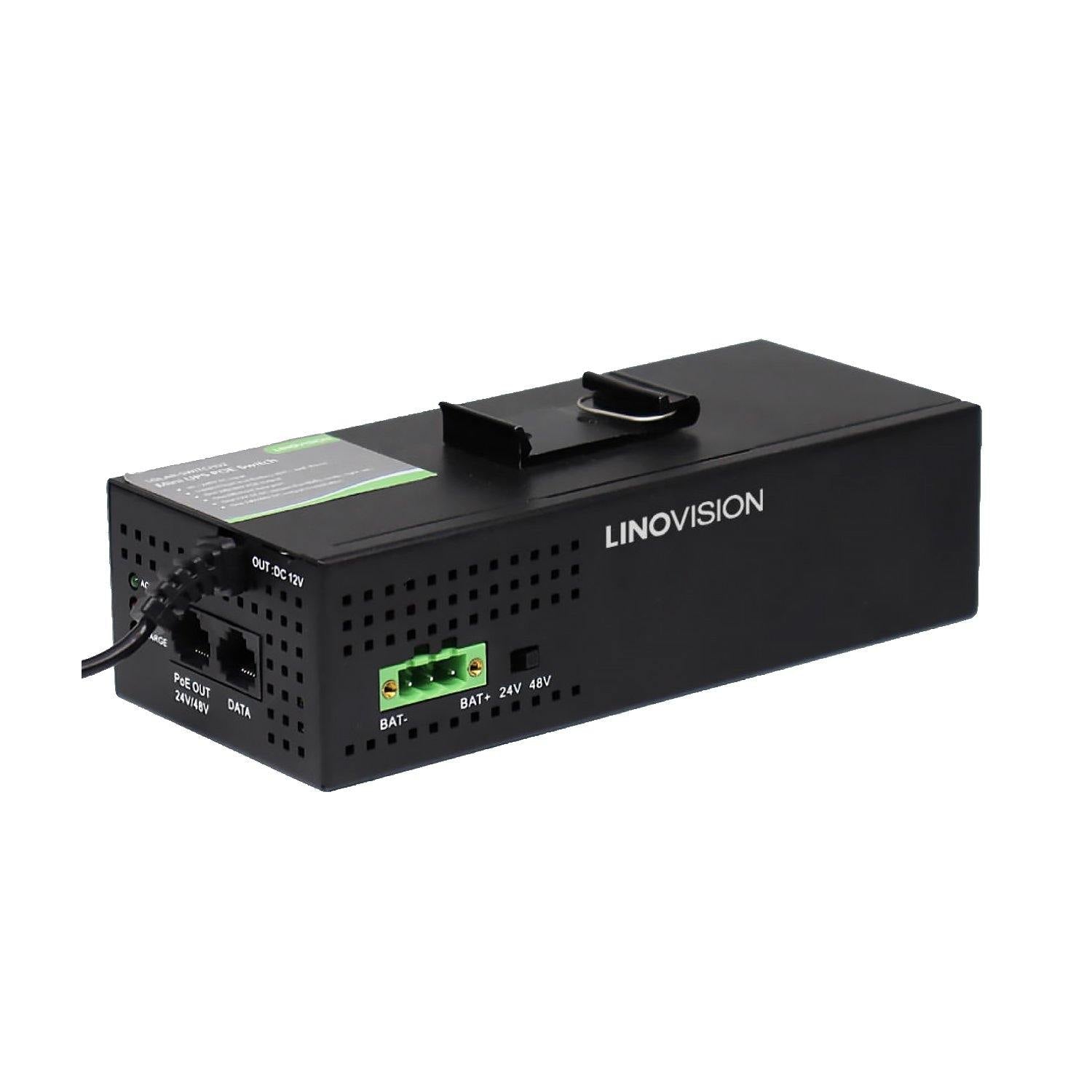

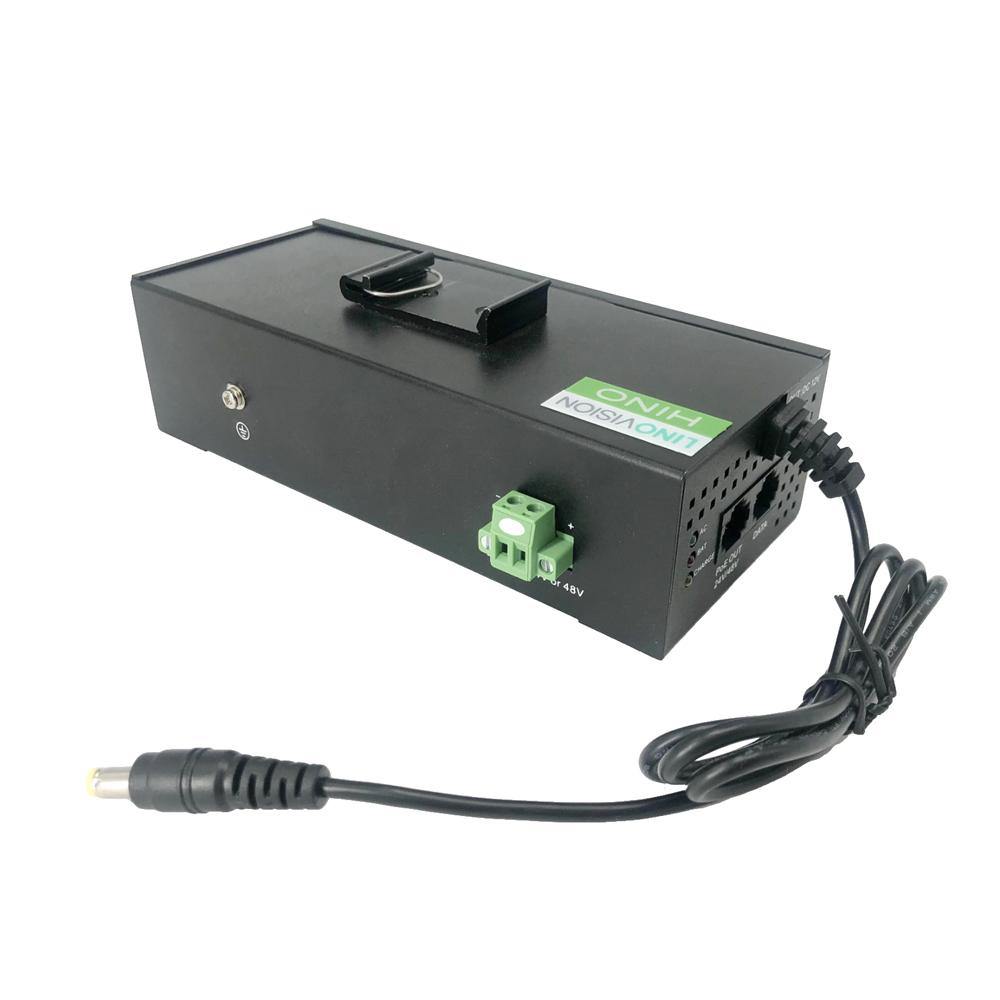

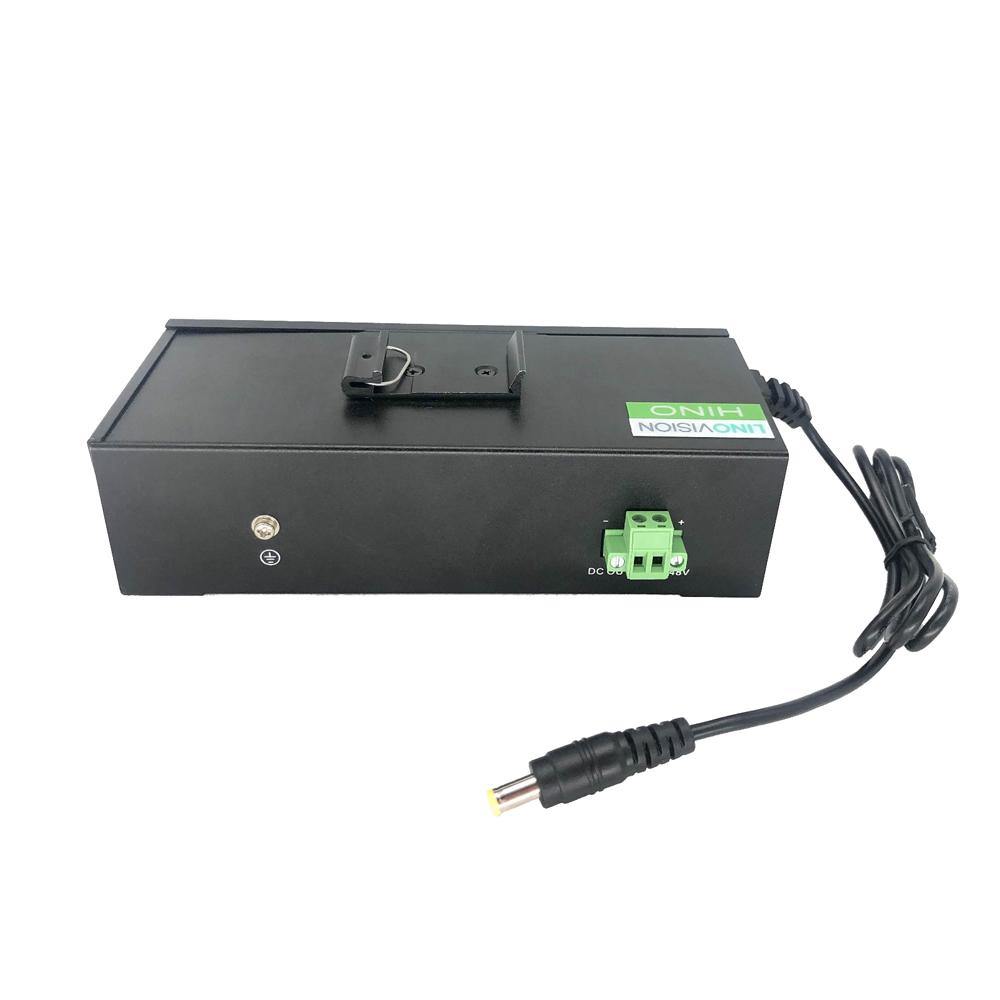

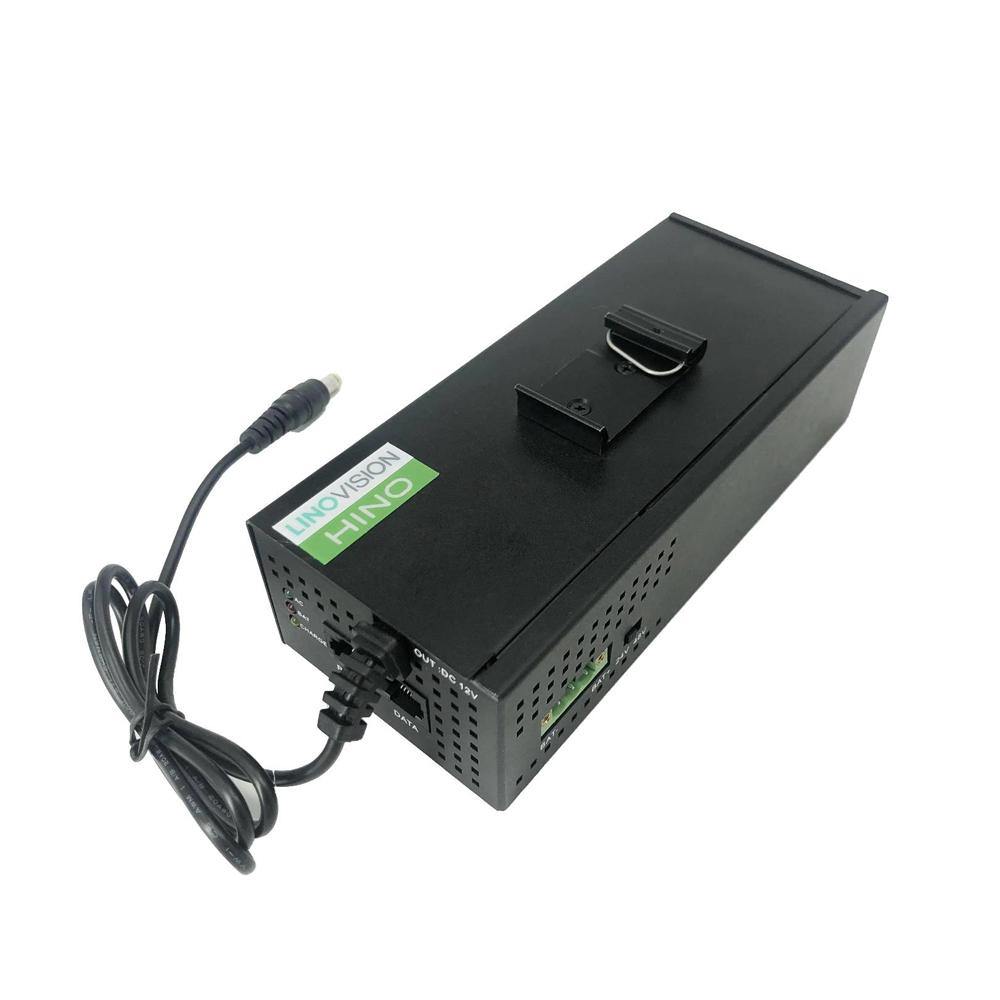

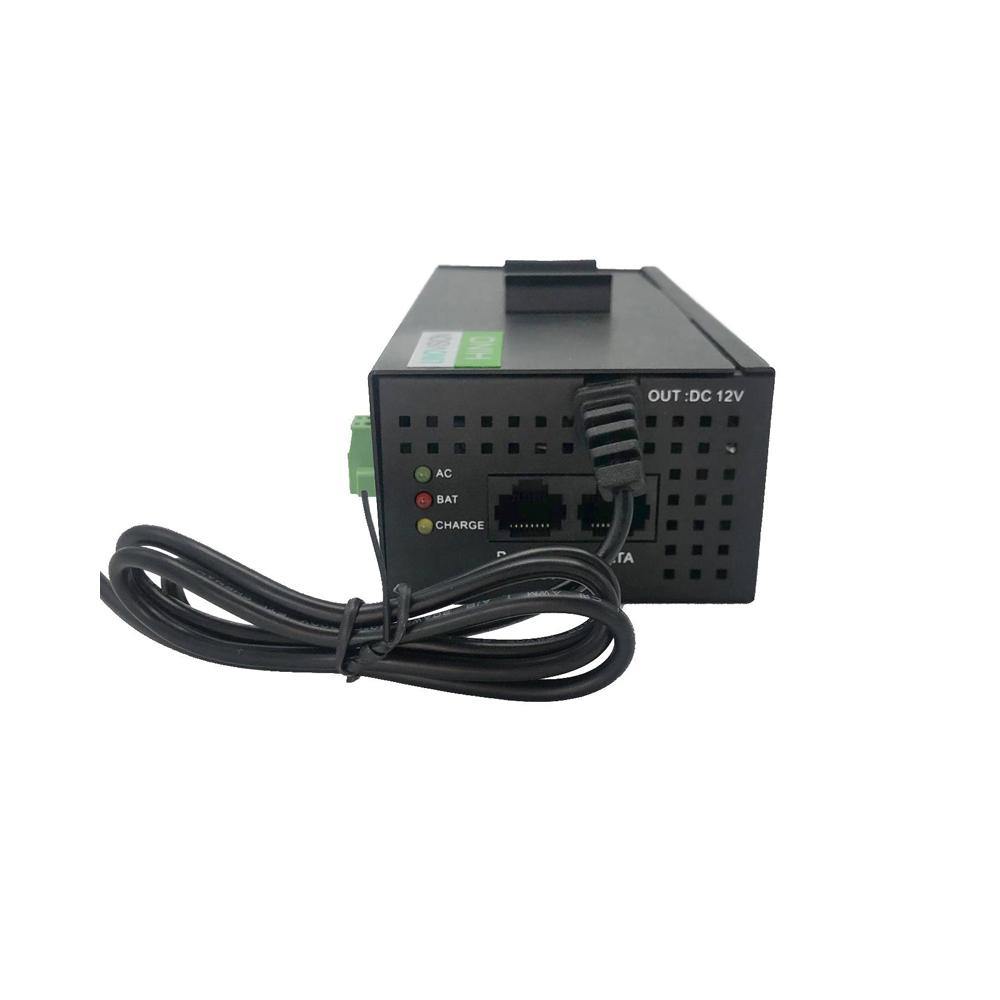

POE-Switch02UPS is a versatile 2-port POE Switch with the functions of DC12V POE switch and UPS POE switch, featuring internal voltage booster, UPS battery control, switchable DC24V/48V and switchable POE 48V and 24V.
As a DC12V POE Switch:
Support DC12V input from power adapter, vehicle battery or solar power
One ethernet data port 10/100/1000Mbps for LAN/WAN connection
Provide one IEEE802.3af/at Standard 48V POE output, or switchable to POE 24V,, max power output is 25W
Provide one 12V 3A DC output (For NVRs, router, light, etc.)
Provide one 24V/48V DC output (Switchable)
As a UPS POE Switch:
Support 90 – 240V AC input
Compatible to lead acid battery or LiFePO4 lithium battery
One ethernet data port 10/100/1000Mbps for LAN/WAN connection
Provide one IEEE802.3af/at Standard 48V POE output, or switchable to POE 24V, max power output is 25W
Provide one 12V 3A DC output (For NVRs, router, light, etc.)
Provide one 24V/48V DC output (Switchable)
Applications
Solar power systems, RVs, buses, trucks, and any places requires 24hs non-stop POE power supply
