$3,499.00 USD

  • Support 12MP/ 4K resolution
  • 256-ch network camera inputs
  • 768Mbps incoming bandwidth
  • 20-ch@1080P decoding
  • Support alarm I/O
  • Support 16 SATA with 8TB HDD for each
  • Support Point-of-Sales (PoS) integration
  • Support RAID 0,1,5,6,10
  • Up to 4 Gigabit network interfaces

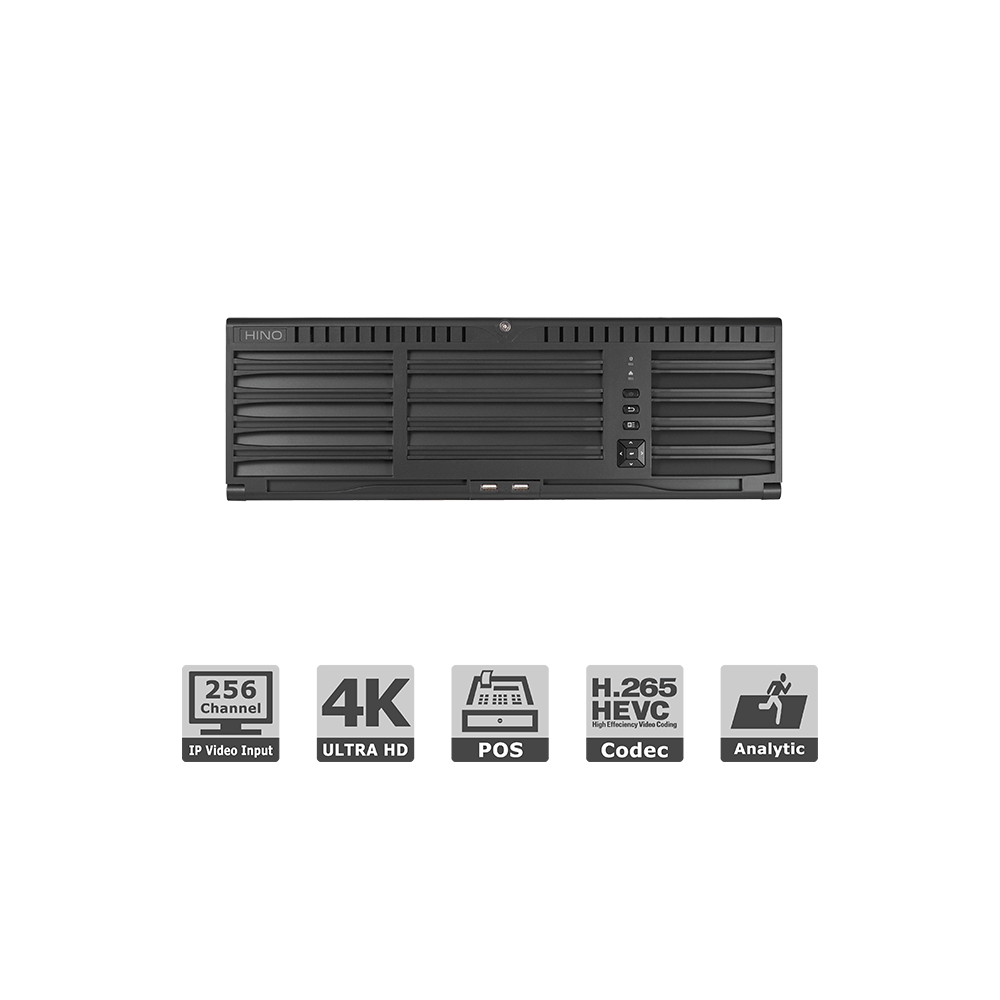

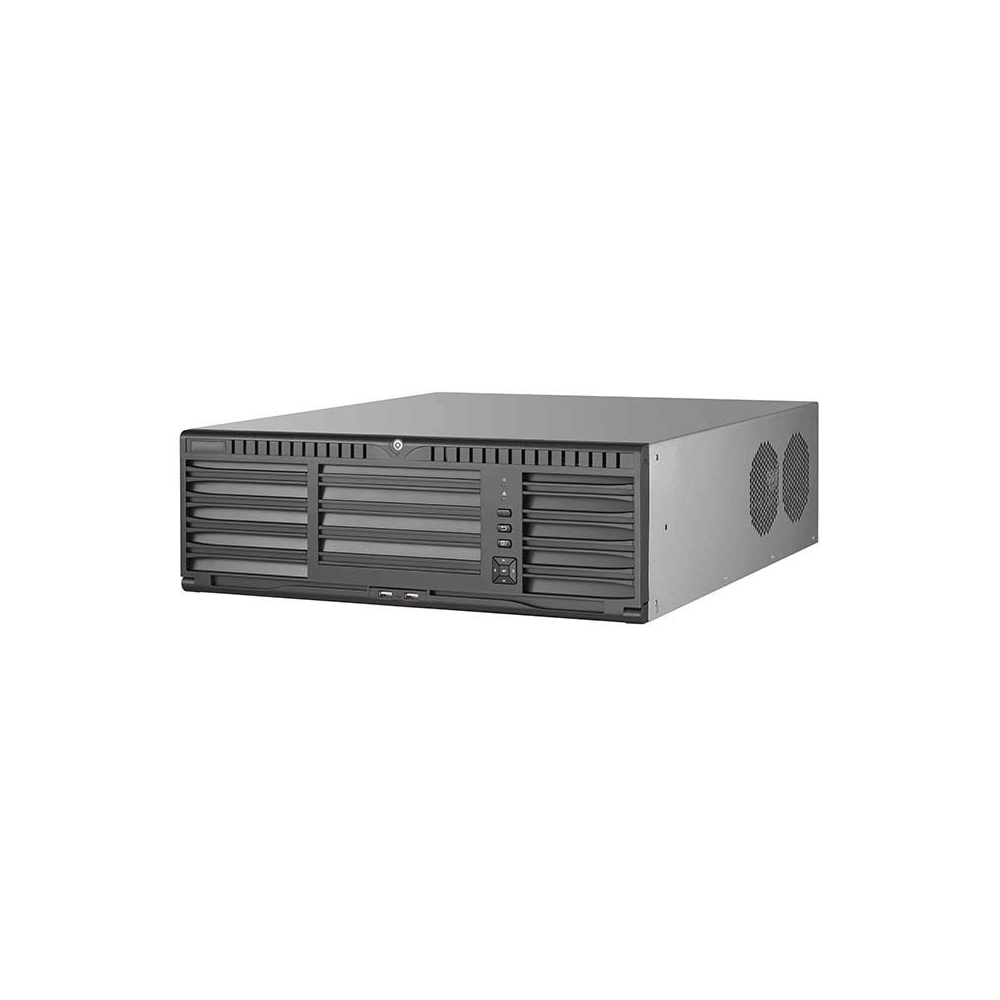

  • Hikvision OEM DS-96256NI-I16
Video/Audio Input
IP video input 256-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
768 768Mbps
Outgoing bandwidth 768Mbps
Remote connection 256
Video/Audio Output
HDMI/VGA output 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (2.0Vp-p, 1KΩ)
VGA Output 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Live view / Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 20-ch@1080P
Hard Disk
SATA 16 SATA interfaces for 16 HDDs
Interface Type 1 eSATA interface
Capacity Up to 8TB capacity for each HDD
Disk array
Array type RAID0, RAID1, RAID5, RAID6, RAID10
Number of array 8
External Interface
Optic fiber interface 4 1000 Mbps optional optic fiber interfaces
Network Interface 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface RS-232, RS-485, Keyboard
USB Interface Front panel: 2 x USB 2.0, Rear panel: 2 x USB 3.0
Alarm In 16-ch
Alarm Out 4-ch
Power Supply 100 to 240 VAC, 550W
Consumption  140W
Working Temperature +32ºF ~ +122ºF
Working Humidity 10 % ~ 90 %
Chassis 3U chassis
Dimensions 17.4 × 19.4×5.7 inch
Weight(without HDD) 35.3 lbs
Qty available: 5 SKU:DS-96256NI-I16
