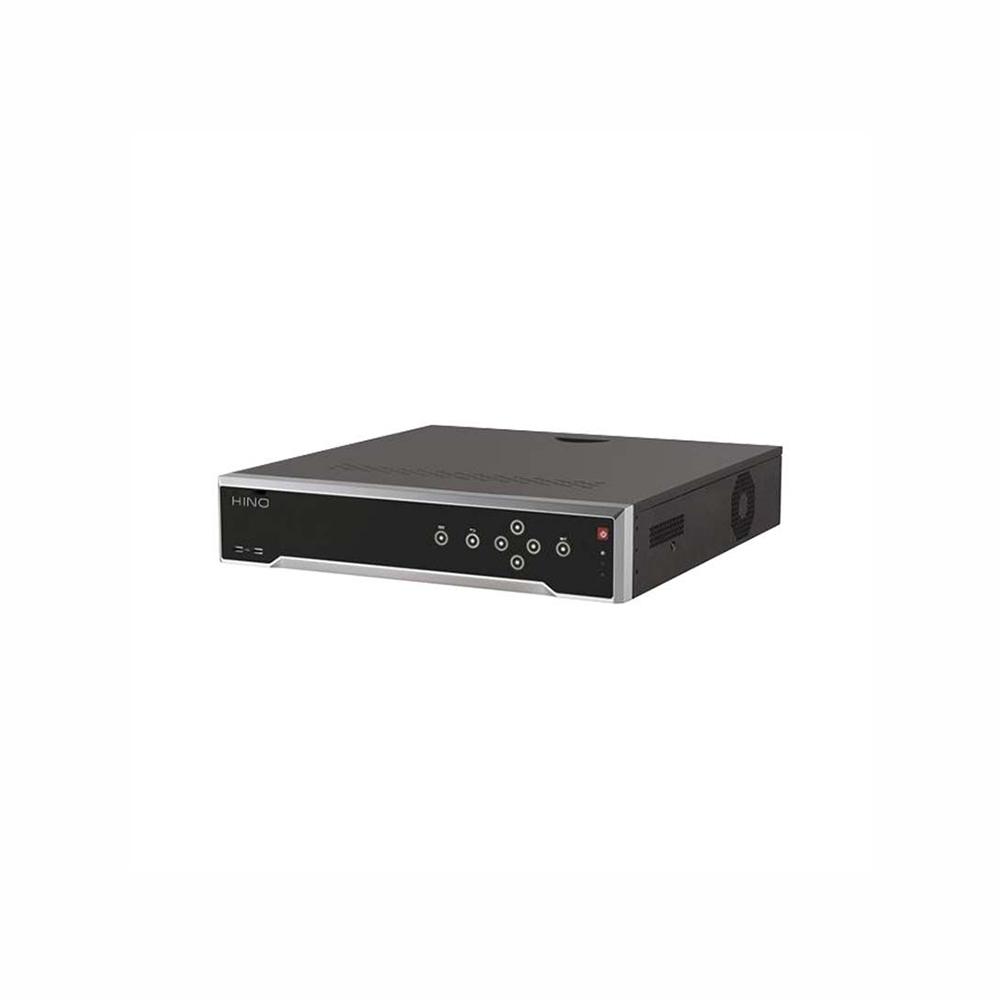

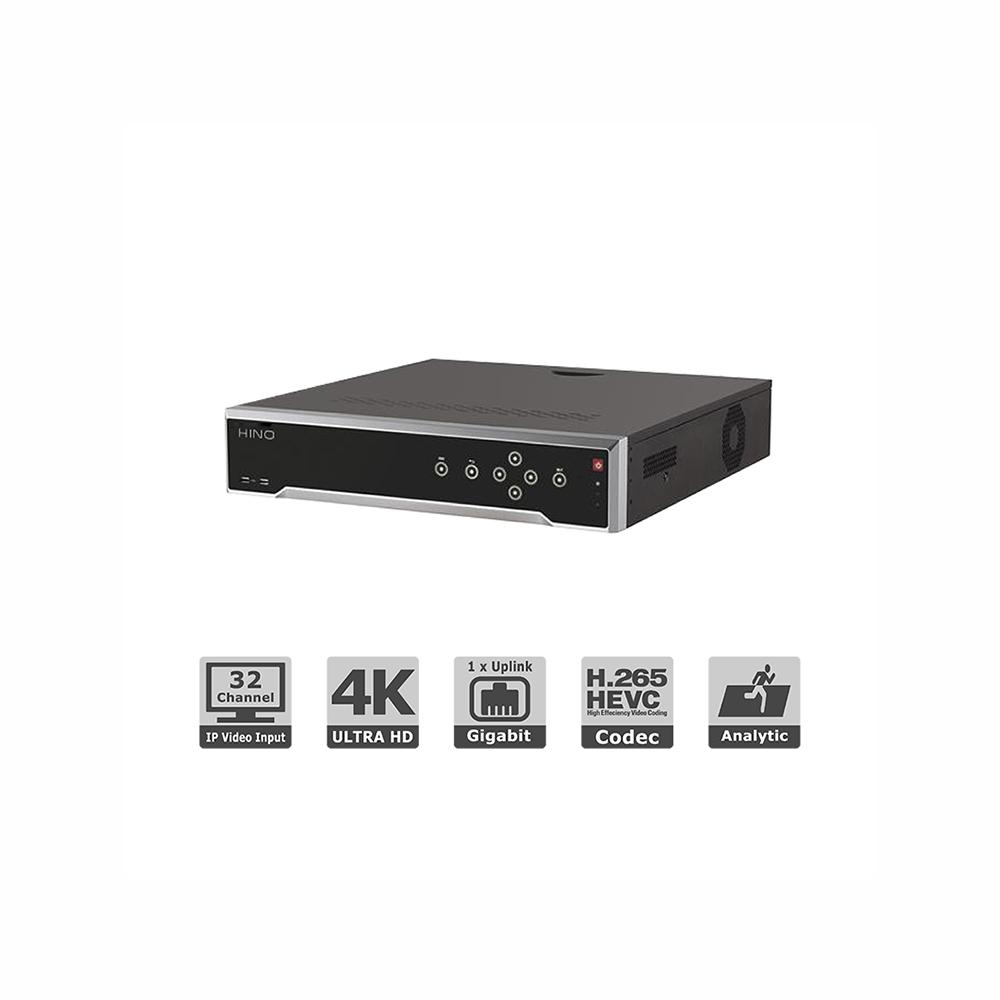

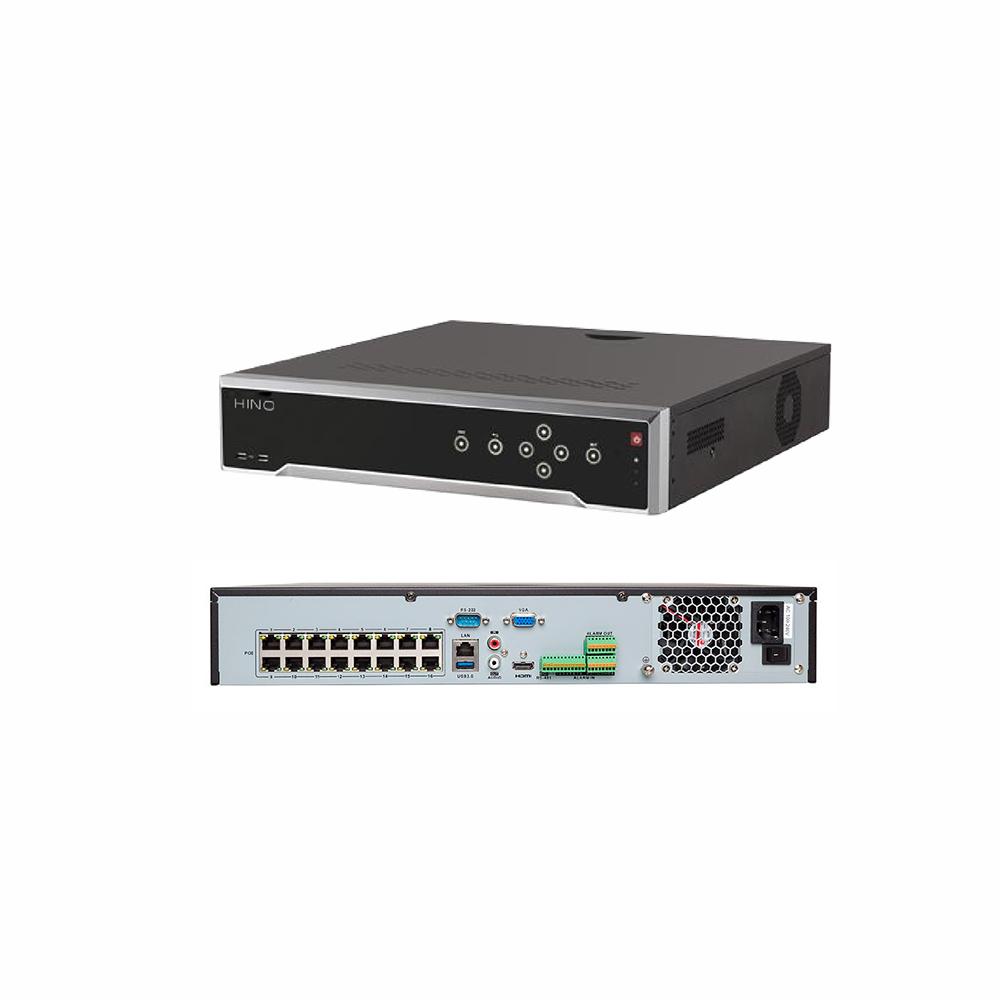

32ch POE NVR, 12mp resolution, max 4 HDD. 1.5U case (NVR532P16-K4)
$519.00 USD
Couldn't load pickup availability
- Support 4K display
- 32-ch IP cameras input, max 8MP resolution
- 256Mbps incoming bandwidth
- 8-ch@1080P 30fps decoding capability
- Support 4 SATA with 6TB HDD for each
- Support 16 independent POE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
- Hikvision OEM DS-7732NI-K4/16P
| Video/Audio Input | |
| IP video input | 32-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 256Mbps |
| Outgoing bandwidth | 160Mpbs |
| Video/Audio Output | |
| HDMI Output | 1-ch, resolution: 4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| VGA Output | 1-ch, resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Decoding | |
| Live view / Playback | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 2-ch @ 4K, or 8-ch @ 1080p |
| Hard Disk | |
| SATA | 4 SATA interfaces for 4HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| External Interface | |
| Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| POE | |
| Interface | 16 independent 10/100 Mbps PoE Ethernet interfaces |
| General | |
| Power Supply | 100 to 240 VAC |
| Consumption(without hard disk and POE) | Less than 20 W |
| Working Temperature | +14 ºF to + 131 ºF |
| Working Humidity | 10 % to 90 % |
| Chassis: | 19 Inch |
| Dimensions | 17.5"× 15.3" × 2.8" |
| Weight(without HDD) | 11 lbs |
