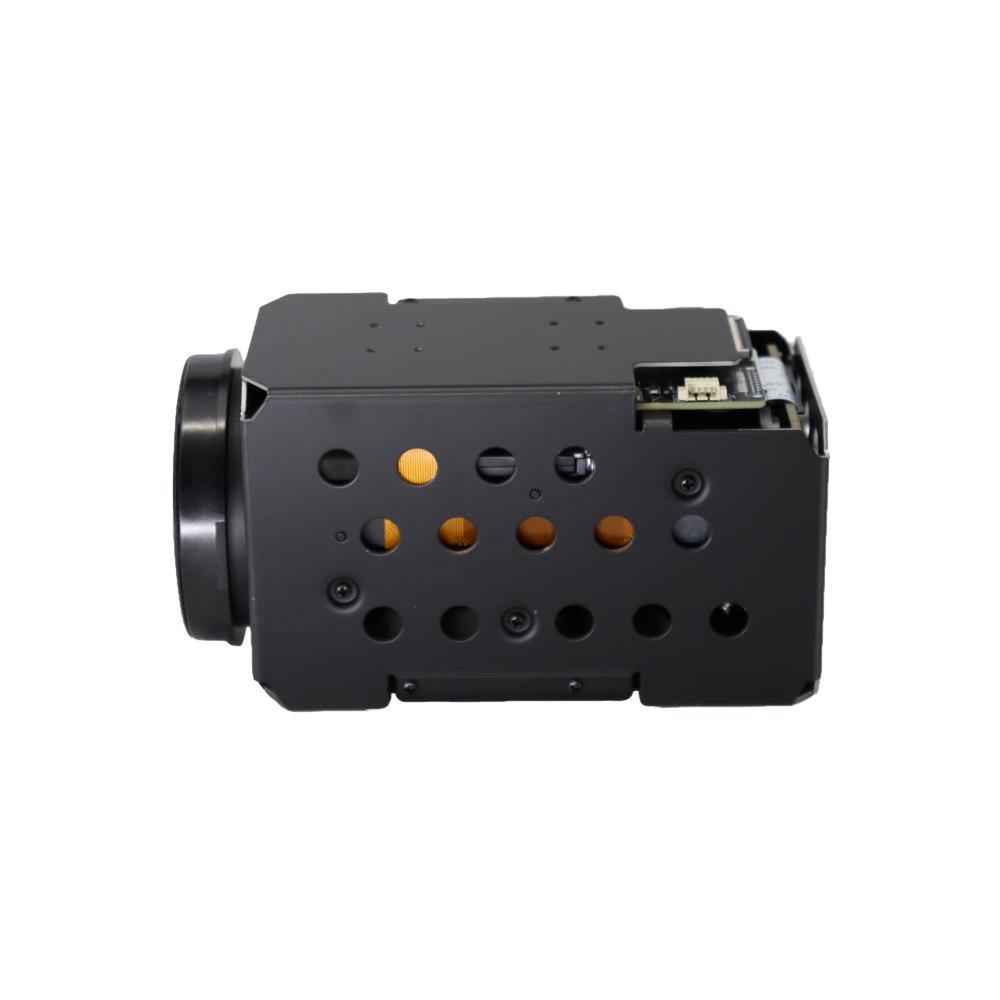

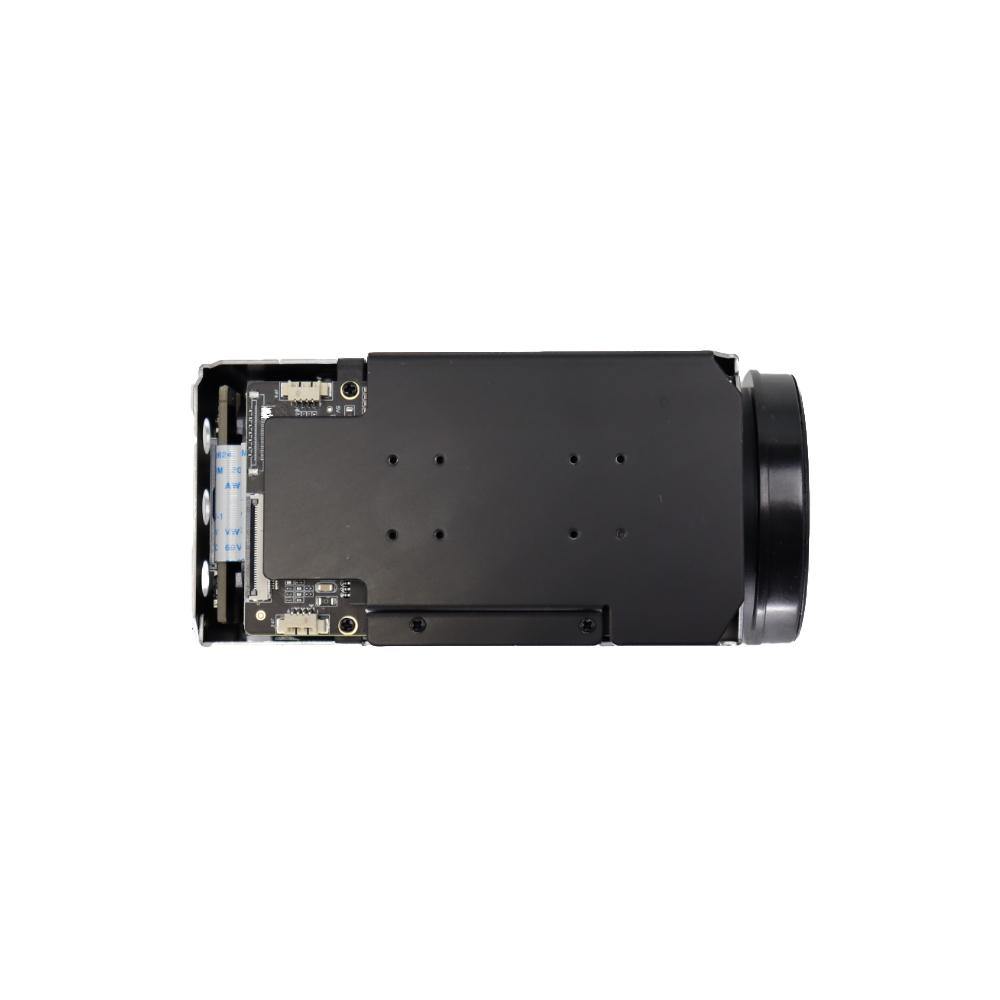

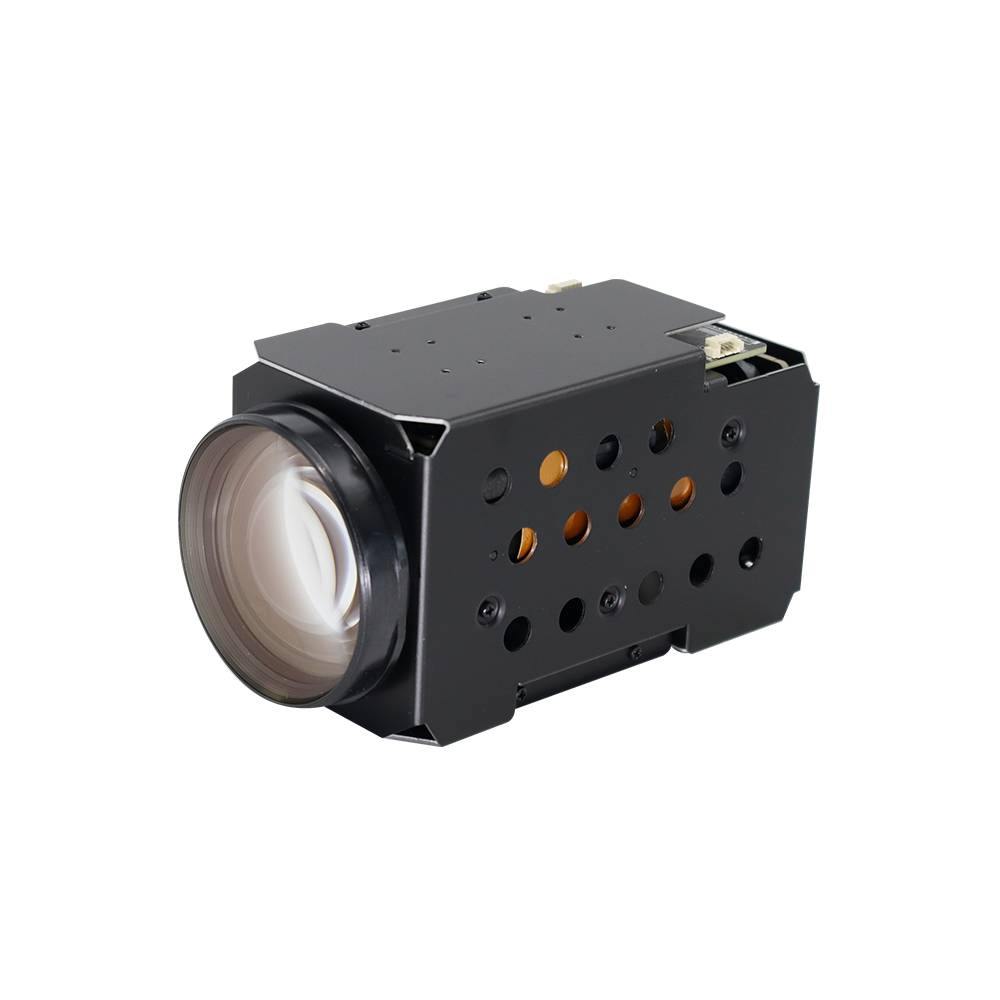

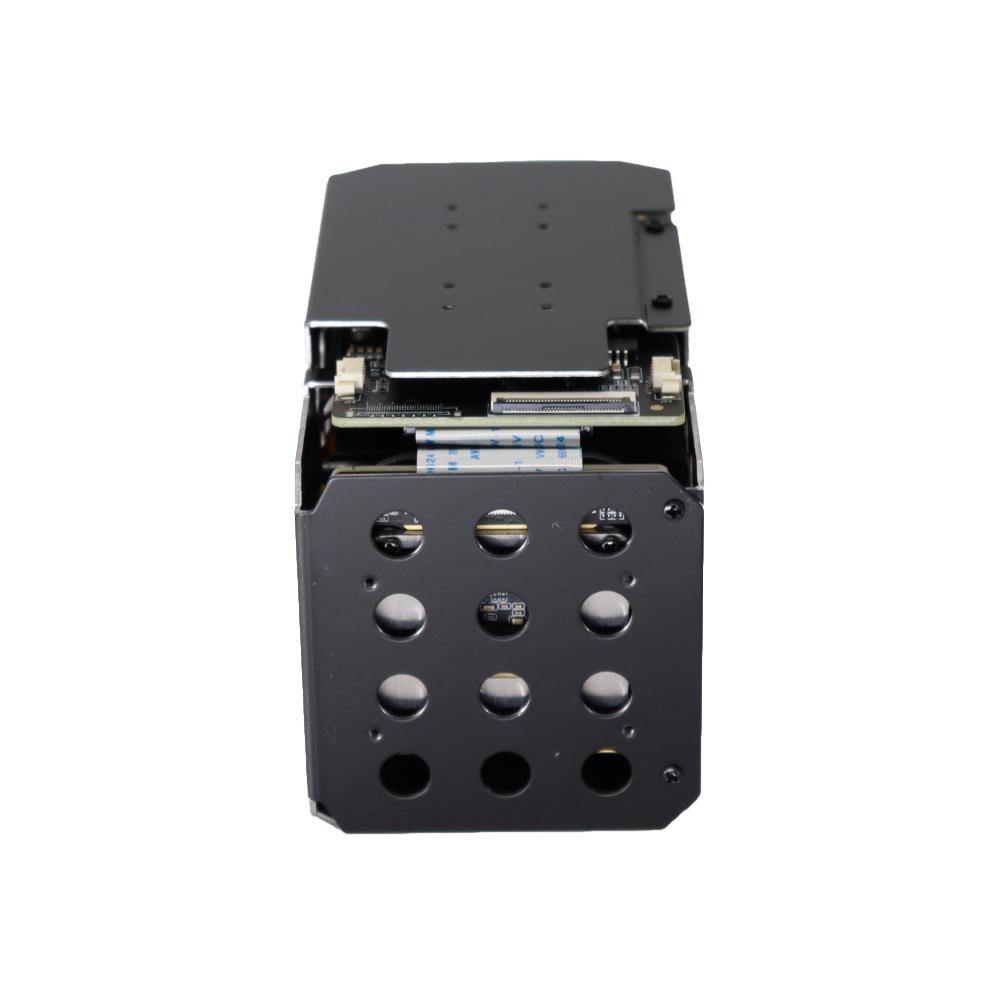

Network zoom camera module is a fully integrated network block camera including Image sensor, long range zoom lens, video encoding, video analysis and network transmission functions.

  • 1/1.8” Sony 347 progressive scan CMOS sensor
  • Up to 4 Megapixels (2560×1440) resolution @ 30fps
  • 37x optical zoom (6.5-240mm), 16x digital zoom
  • H.265/H.264/MJPEG video compression algorithm
  • Ultra starlight low light performance, 0.0005Lux/F1.5(color), 0.0001Lux/F1.5 (black/white), 0 Lux with IR
  • 255 PTZ presets, 8 patterns, home position
  • Support Optical Defog
  • Provide audio I/O and alarm I/O
  • 3D DNR, BLC, HLC, EIS, 120dB WDR
  • Support local SD card storage, up to 256GB
  • Optional Bluetooth, Wi-Fi, 4G LTE extension modules
  • Compact dimension, fits into most of regular PTZs / explosion proof PTZs / bullet enclosures
  • Intuitive WEB GUI and free CMS software, flexible OEM service
  • 134.5mm x 63mm x 72.5mm or 5.3″ x 2.48” x 2.85”

Datasheet

SKU: ZCM4237
