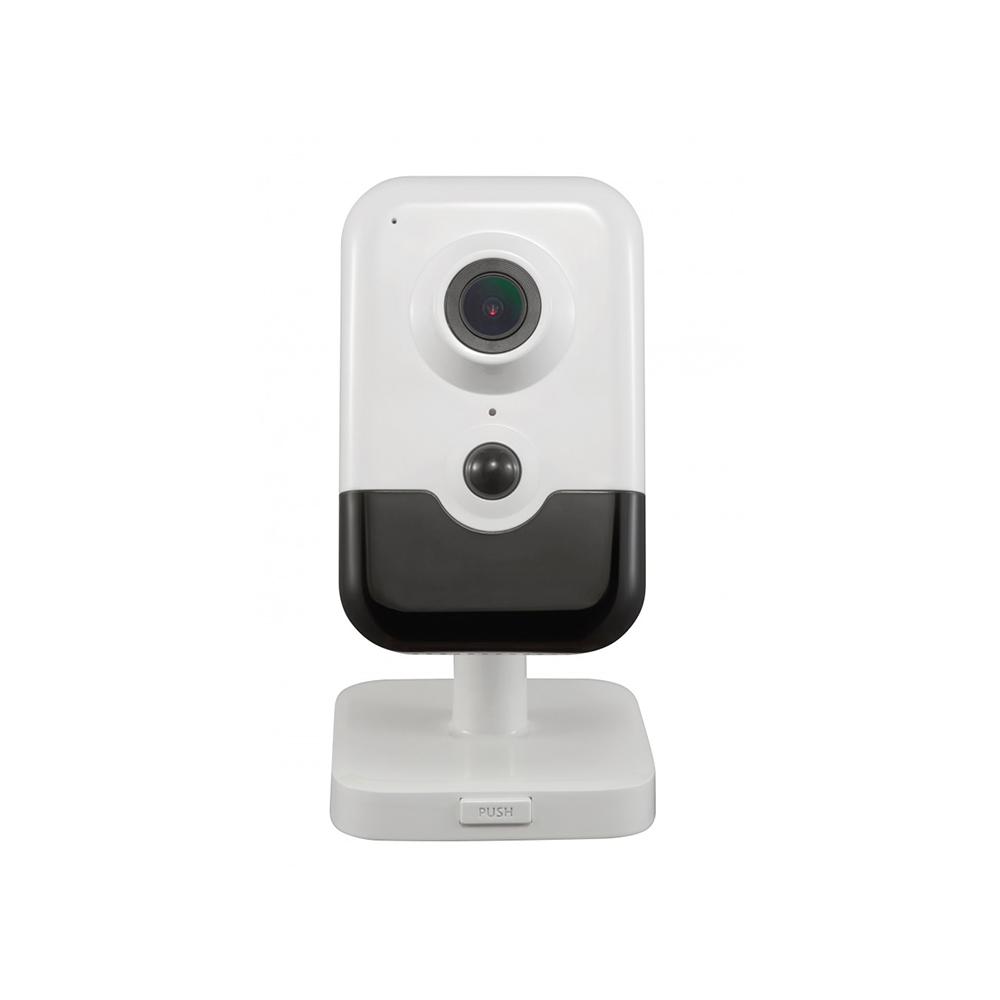

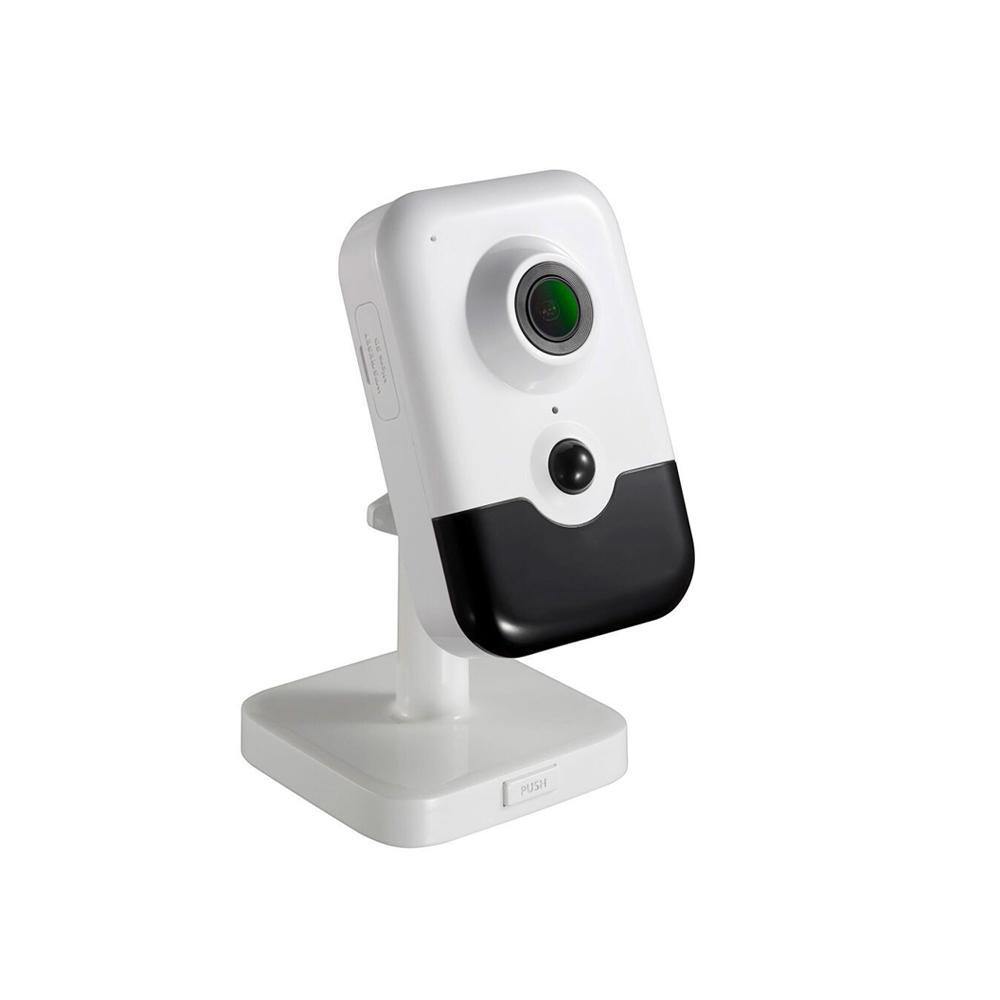

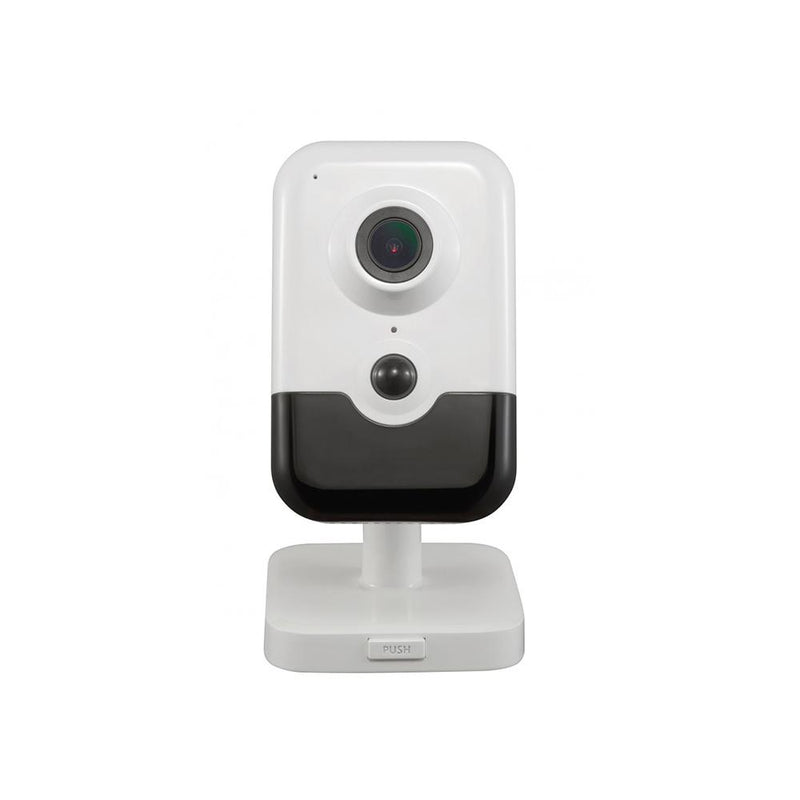

4 MP Indoor WDR Fixed Cube Network Camera NC324-CU
$109.00 USD
$159.00 USD
Couldn't load pickup availability
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- Wifi & built in microphone/speakers
- 2688 × 1520 @ 30fps
- IR: up to 10 m
- Built-in MicroSD/SDHC/SDXC slot, up to 128G
- PoE
- BLC/3D DNR/HLC/ROI
- Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @ (F1.6, AGCON), 0 lux with IR
| Camera HNC324-CU | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° 4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Main Profile/High Profile |
| Video bit rate | 256Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 2688 × 1520 |
| Frame Rate | 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub-stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm in |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |

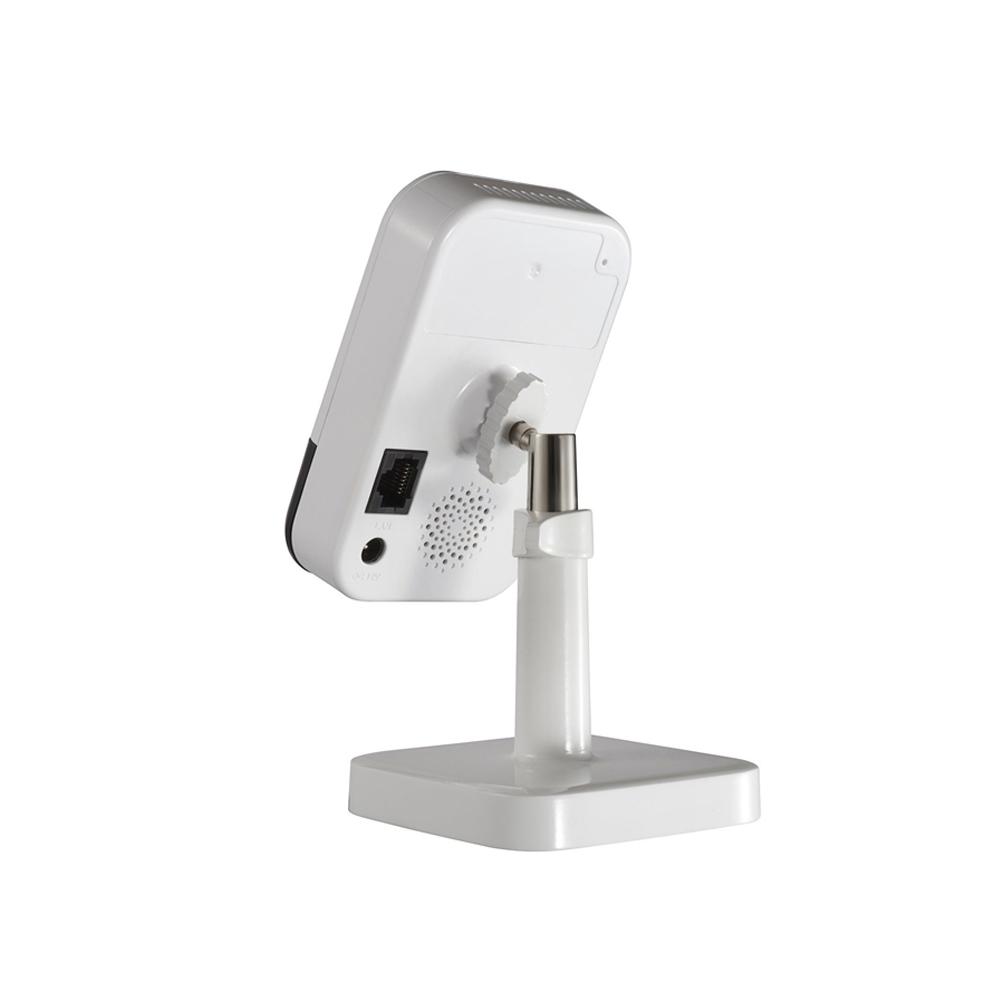

| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| General | |
| Operating Conditions | -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
| IR Range | Up to 10m |
| PIR | 10m |

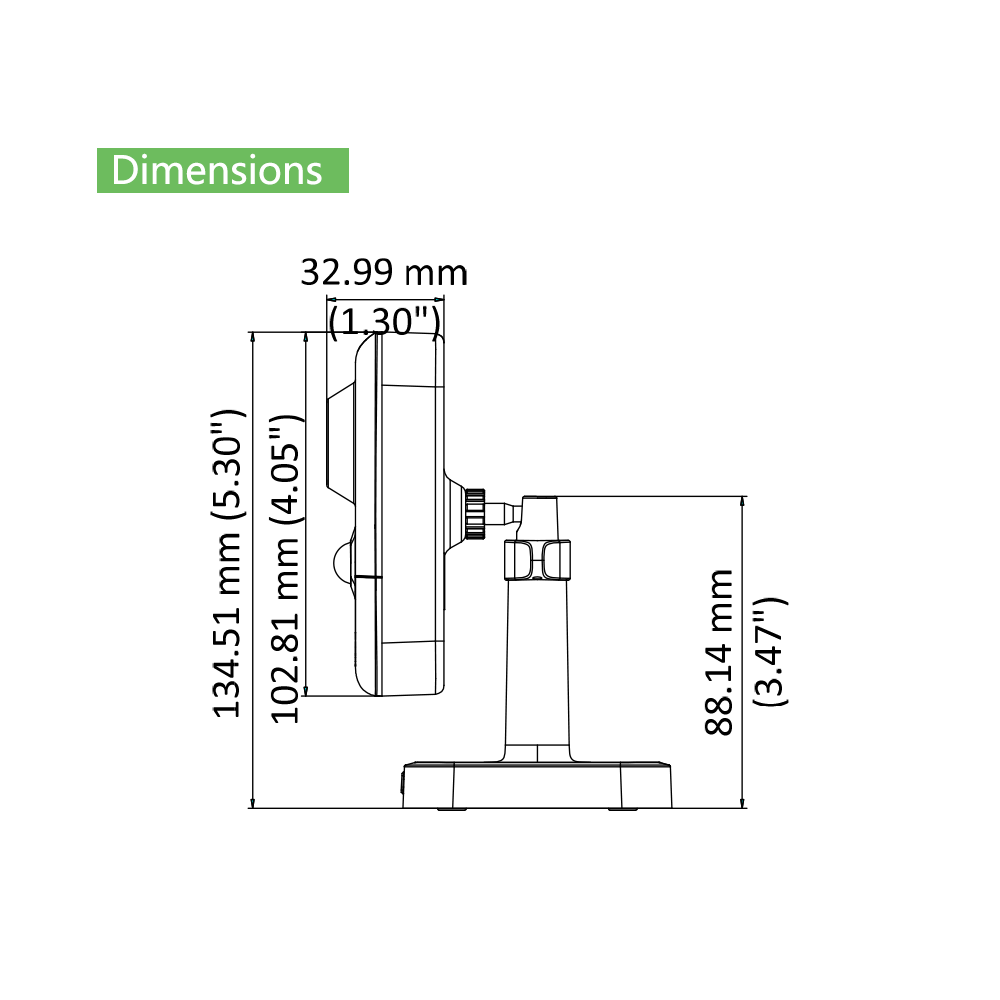

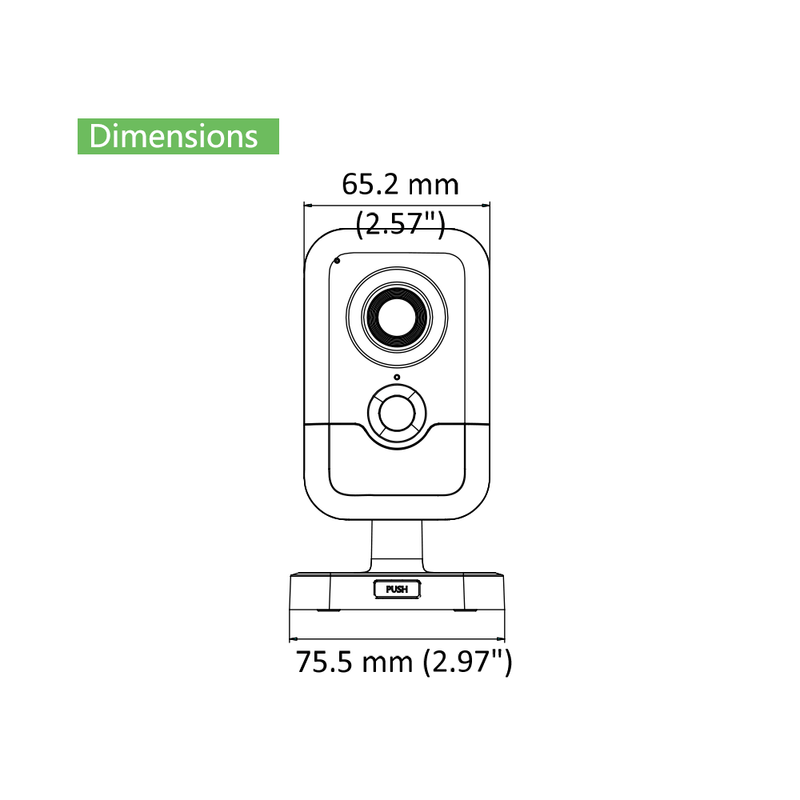

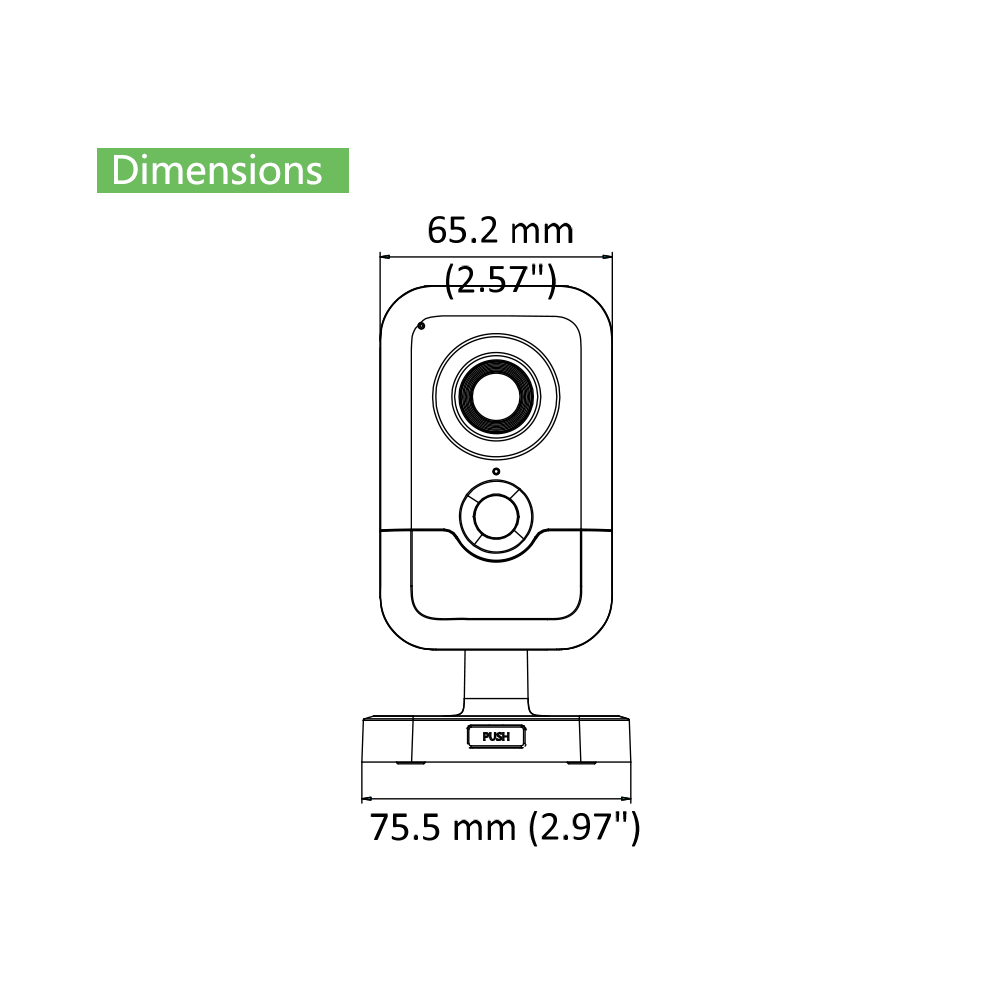

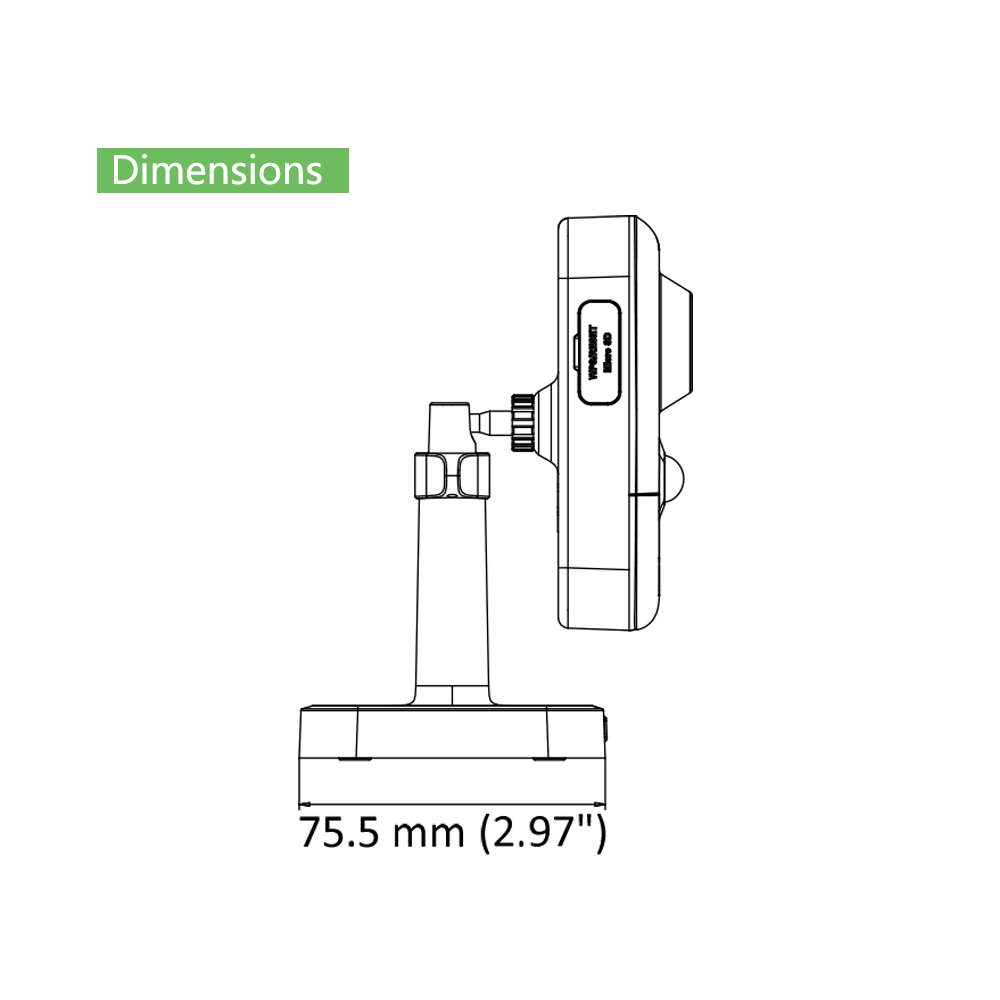

| Dimensions | 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") |
| Weight | Camera: Approx. 128 g (0.3 lb.) |

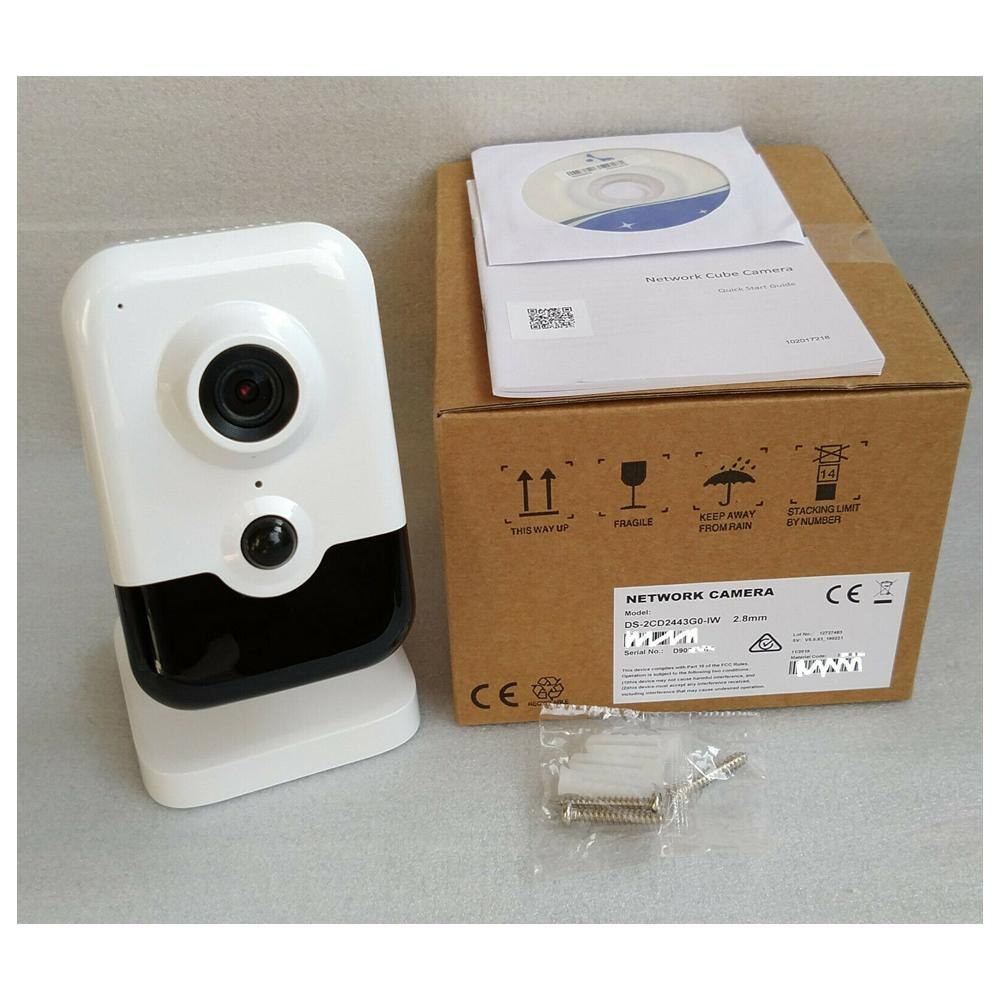

DS-2CD2443G0-IW_Datasheet
