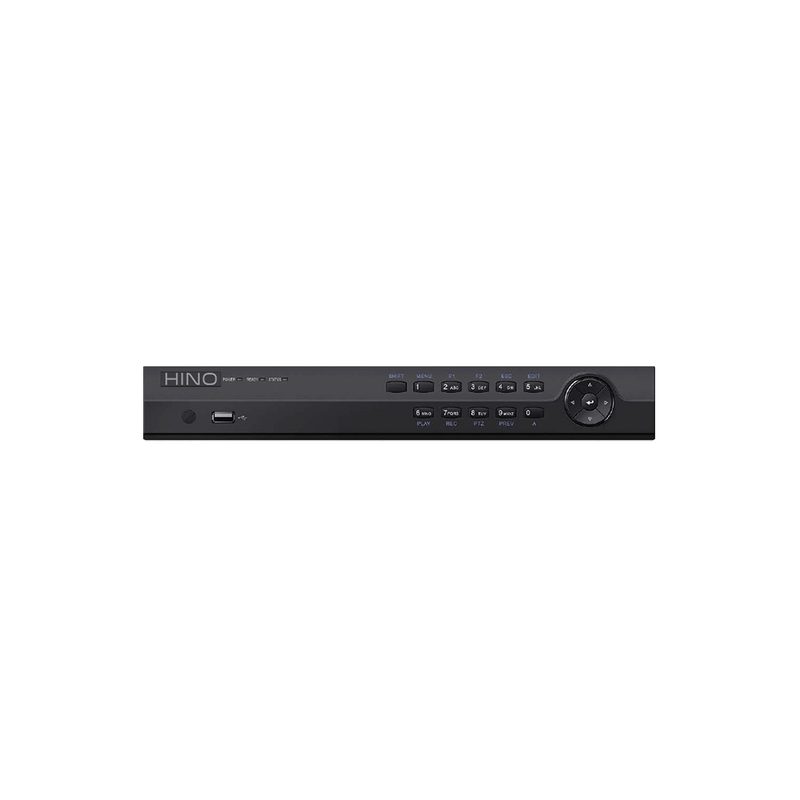

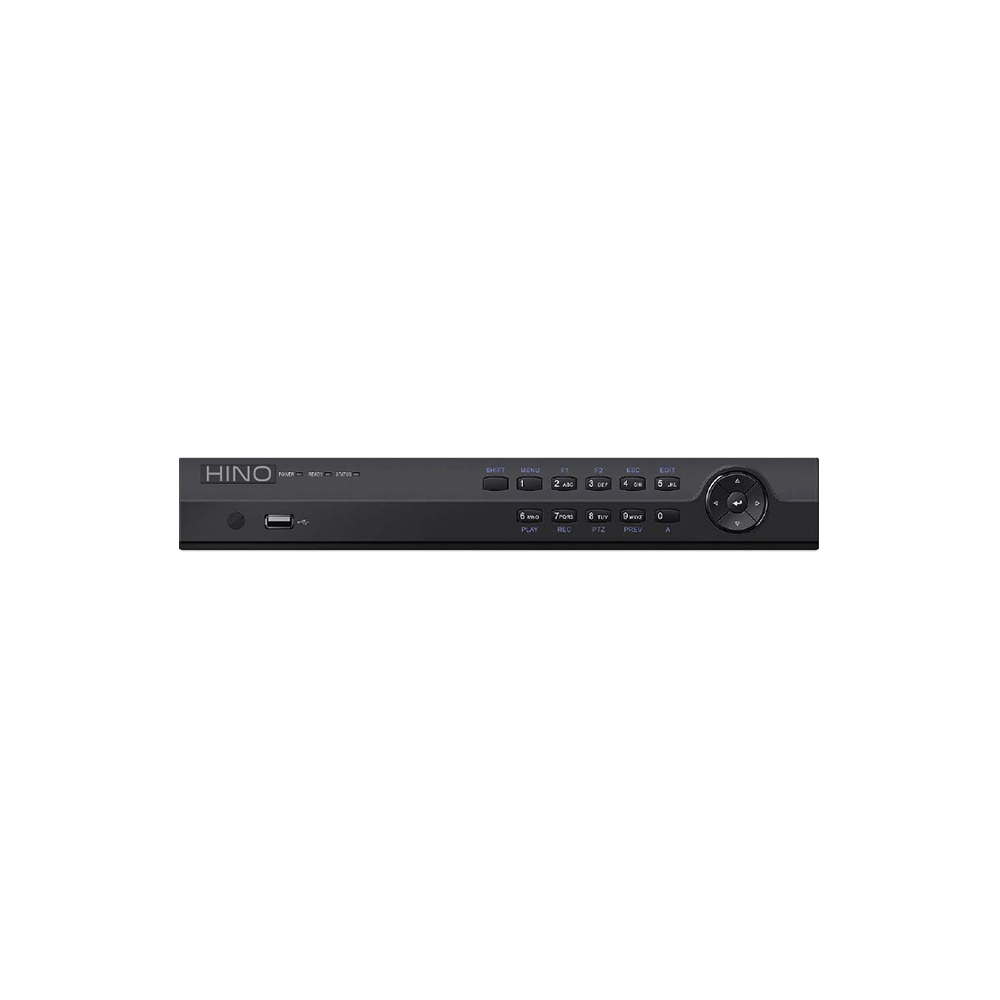

4ch H.265 4K DVR max 5MP recording, max 1 HDD compatible to HDTVI/HDCVI/AHD/CVBS signal input
$99.00 USD
Couldn't load pickup availability
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Support max 4+2 ch 8MP IP camera input
- Up to 8 MP resolution for recording
- H.265 Pro+/H.265 Pro/H.265 encoding
- Support 1 SATA with 10TB HDD
- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
- HDTVI DVR
| Video/Audio Input | |
| Audio Input | 4-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input: 8MP, 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 5MP, 4MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVI input: 4MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| IP Video Input | 4+2-ch Up to 8MP resolution |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
| Video/Audio Output | |
| CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output |
2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: |
| 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 8MP/5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
| Synchronous Playback | 4-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; standard RS-485 serial interface, half-duplex |
| General | |
| Power Supply | 12V DC |
| Consumption | Less than 10W(without hard disks) |
| Working Temperature | 14 ºF ~ 131 ºF |
| Working Humidity | 10% ~ 90% |
| Dimensions | 12.4" x 9.5" x 1.8" |
| Weight | 2.6lbs |
