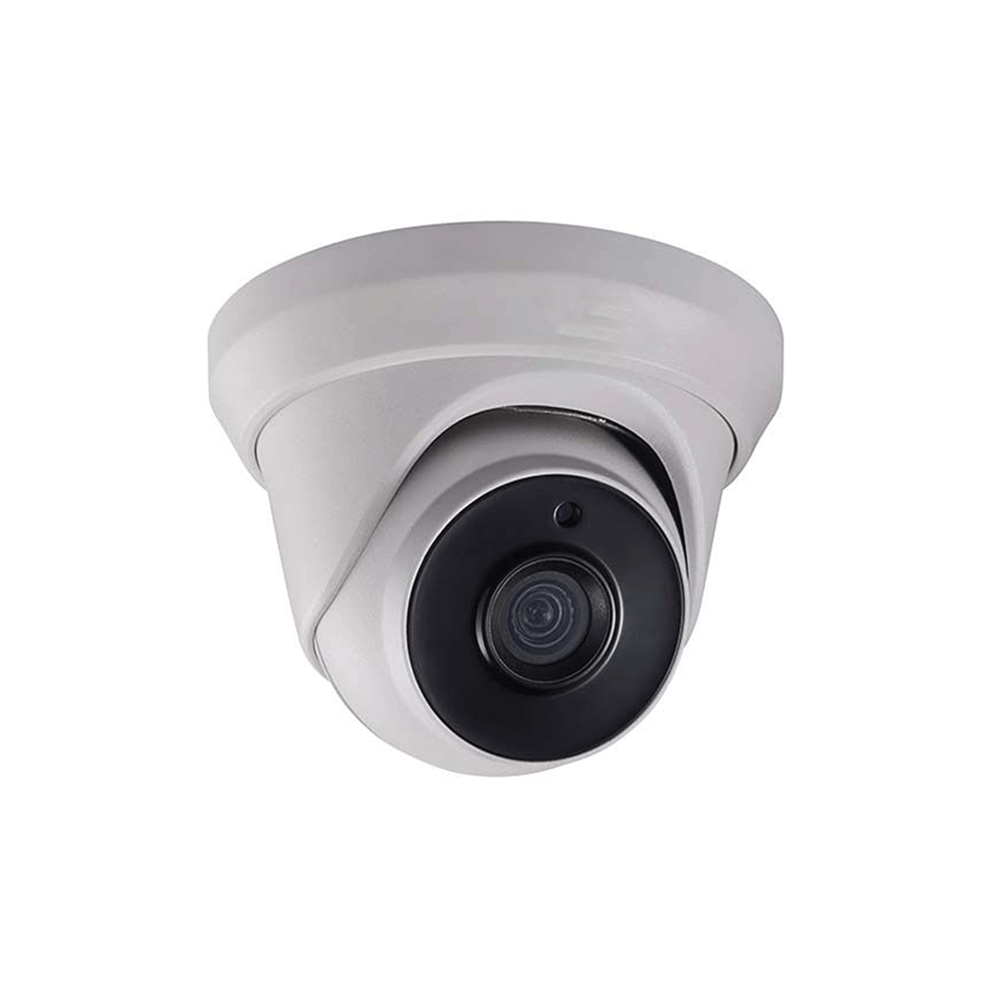

5MP HD-TVI Vandal Proof EXIR Turret X Camera-2.8mm TVI/AHD/CVI/CVBS video signal output
$59.00 USD
- 5MP, 2560 × 1944@20fps
- 3.6mm fixed lens
- Digital WDR (Wide Dynamic Range)
- Switchable TVI/AHD/CVI/CVBS
- Support coax protocol
- Support OSD menu
- EXIR, IR up to 132ft
- IP67
- HD Video Surveillance
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Min. Illumination | 0.01Lux @ (F1.2,AGC ON), 0Lux with IR |
Electronic Shutter | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Lens | 3.6 mm fixed lens |
Horizontal Field of View: 80.1° (3.6 mm) | |
Lens Mount | M12 |
Day & Night | IR cut filter |
Angle Adjustment | Pan:0‐360°, Tilt:0‐75°, Rotation:0‐360° |
Synchronization | Internal synchronization |
Video Frame Rate | PAL: 5 MP@20fps, 4MP@25fps, 1080p@25fps NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps |
HD Video Output | 1 HD analog output |
Switch Button | TVI/AHD/CVI/CVBS |
Menu | |
AGC | Support |
Day/Night Mode | Auto/Color/BW (Black and White) |
White Balance | ATW/MWB |
BLC(Backlight Compensation) | Support |
DWDR(Digital Wide Dynamic Range) | Support |
Language | English |
Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
General | |
Operating Conditions | -40 °F ~ 140 °F ,Humidity 90% or less (non-condensing) |
Power Supply | 12VDC±25% |
Power Consumption | Max.4.3W |
Protection Level | IP67 |
Material | Enclosure: Plastic Main body: Metal |
IR Range | Up to 132ft |
Communication | Up the coax, Protocol: Hikvision-C (TVI output) |
Dimensions | Camera: Ø 110 mm x 93.2 mm ( Φ4.33”×3.67”) |
Weight | Approx. 350 g (0.77 lb.) |
