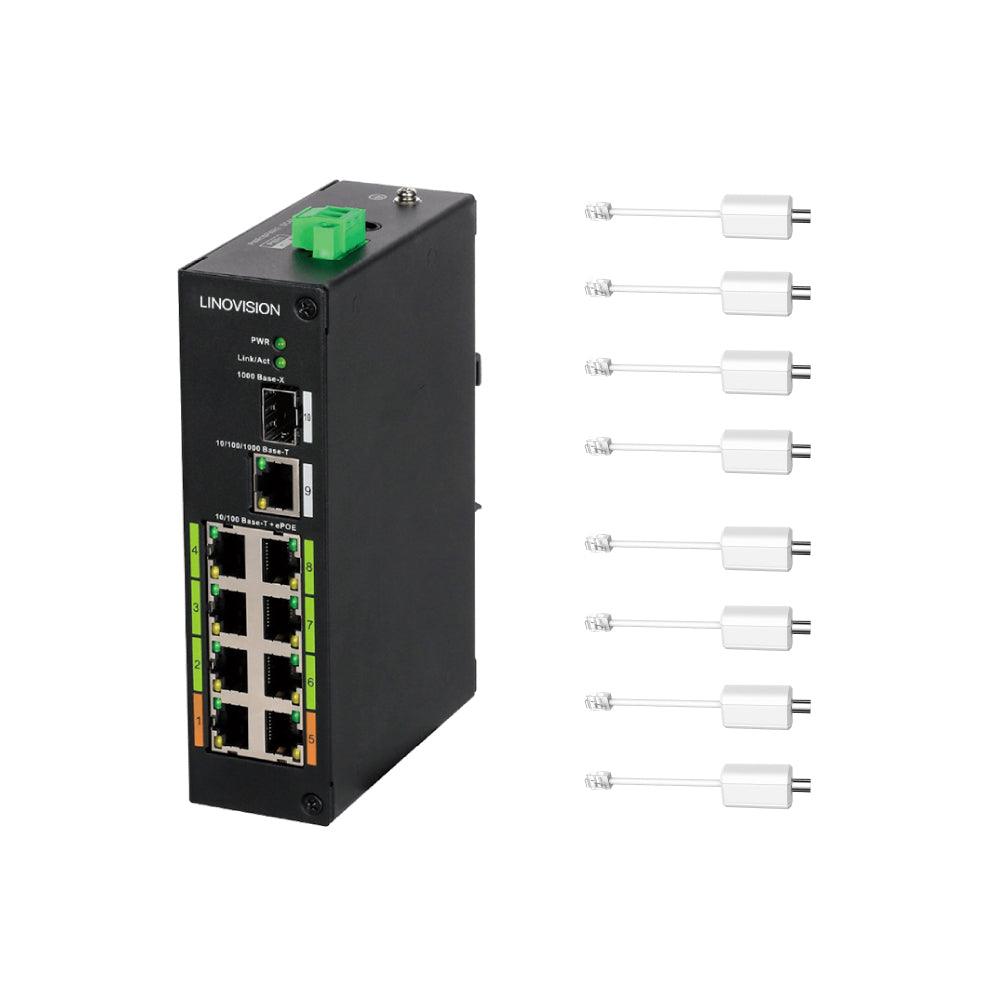

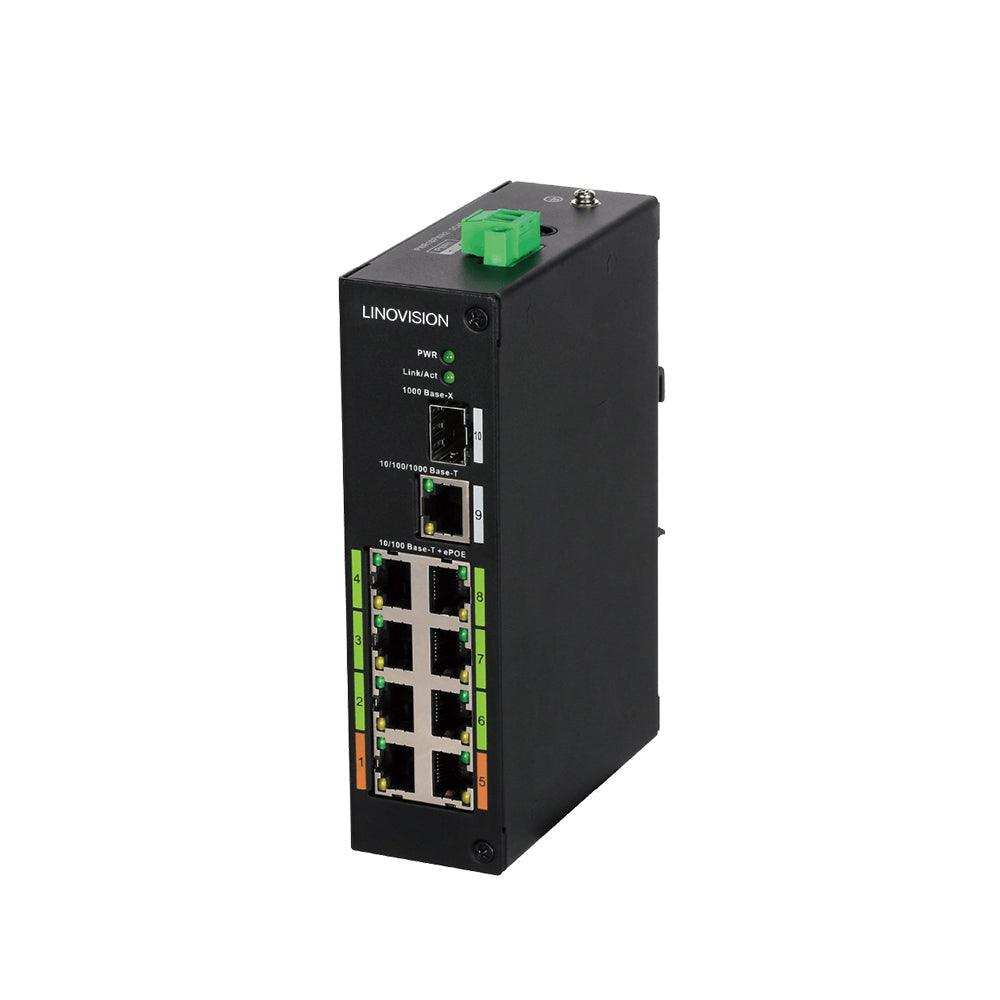

8-Port EOC & POE Hybrid Switch, Up to 2,500ft POE + Data Transmission over Cat5E Network Cable or Coaxial Cable, Simply cabling and plug-n-play
from$249.00 USD$279.00 USD /per
Couldn't load pickup availability

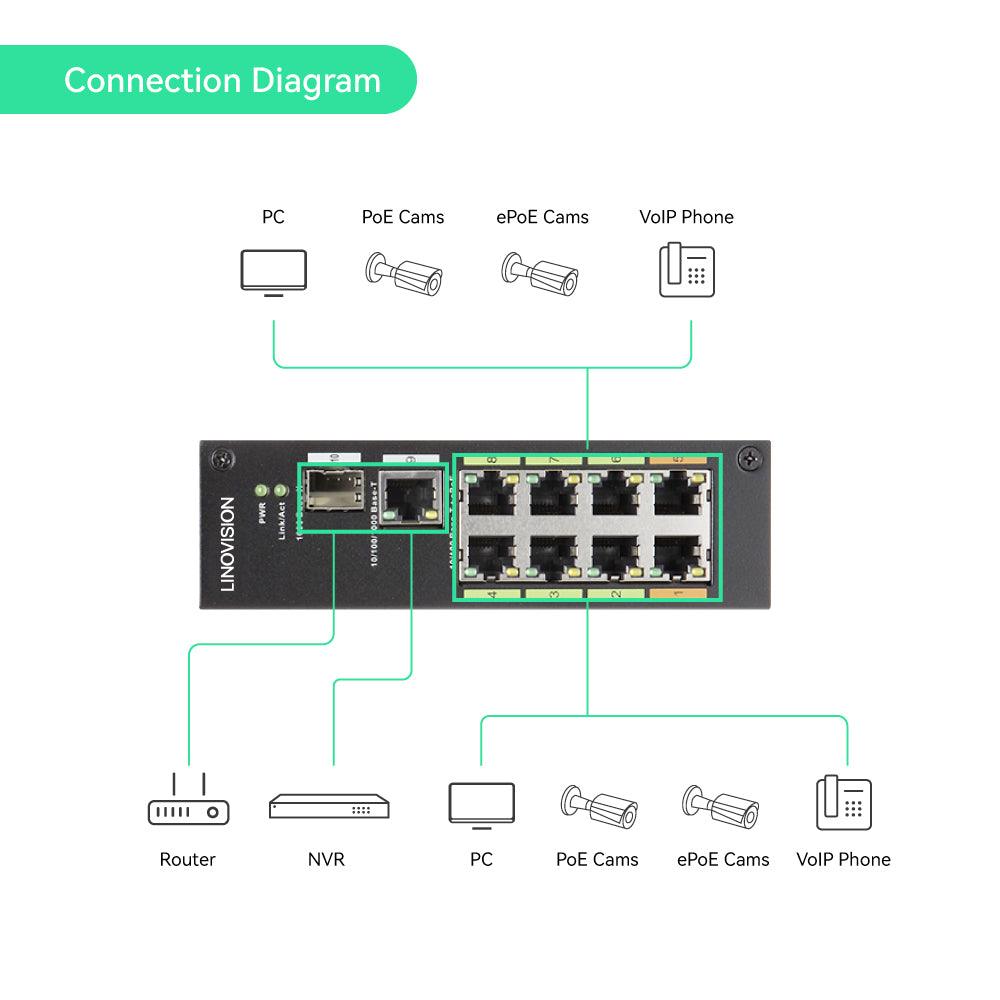

【8-PORT INDUSTRIAL PoE SWITCH】It provides 8 10M/100Mbps PoE ports, 1 Gigabit Ethernet and 1 SFP Fiber Uplinks. It conforms IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards. The total PoE power budget is 120W, Port 1 or 5 ≤ 60W (Hi-PoE standard), Port 2,3,4,6,7,8 ≤ 30W(IEEE802.3at).

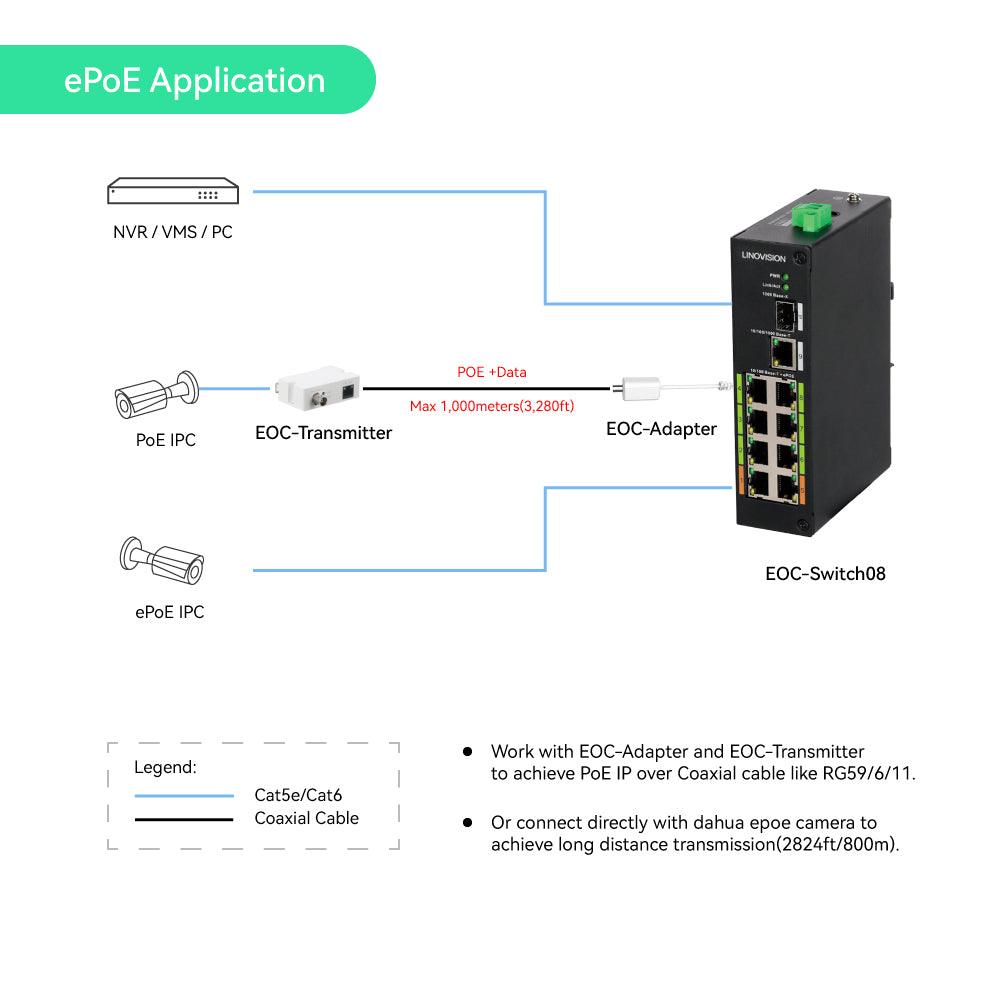

【8-PORT PoE OVER COAX】All 8 ports can be working in EOC Receiver mode. When bundling with Linovision EOC-Transmitter, it supports PoE transmission over 8 coaxiale cables at max 3,300ft distance without repeater.
【SIMPLIFIED WIRING】Instead of using 8 units of EOC Receivers and PoE switch, you can just use one of this EOC & PoE Hybrid Switch to provide the same functions. It makes the cabling more clean and organized.
【ULTRA LONG POE EXTEND Over CAT5E/CAT6】When bundling with Linovision EOC-Transmitter and EOC-Adapter, it can also extend Ultra Long POE Transmission through regular network cables over 2,600ft.

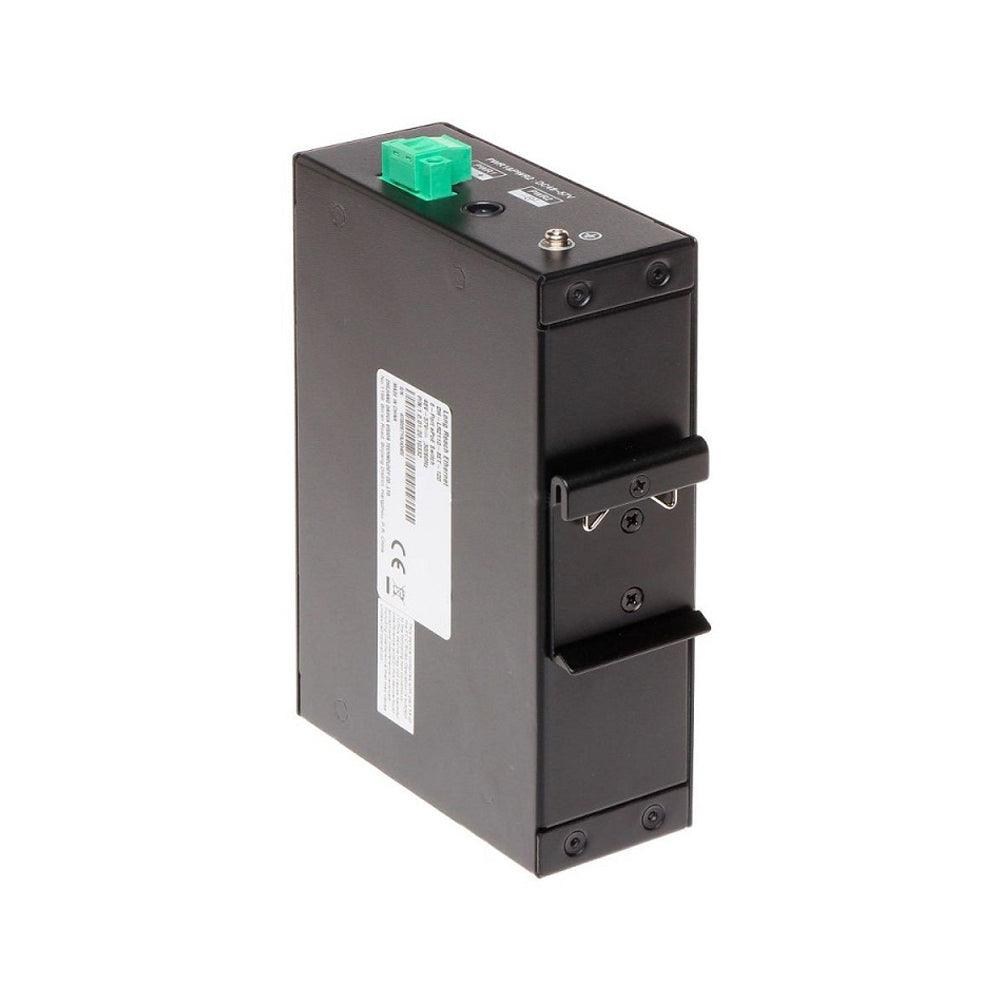

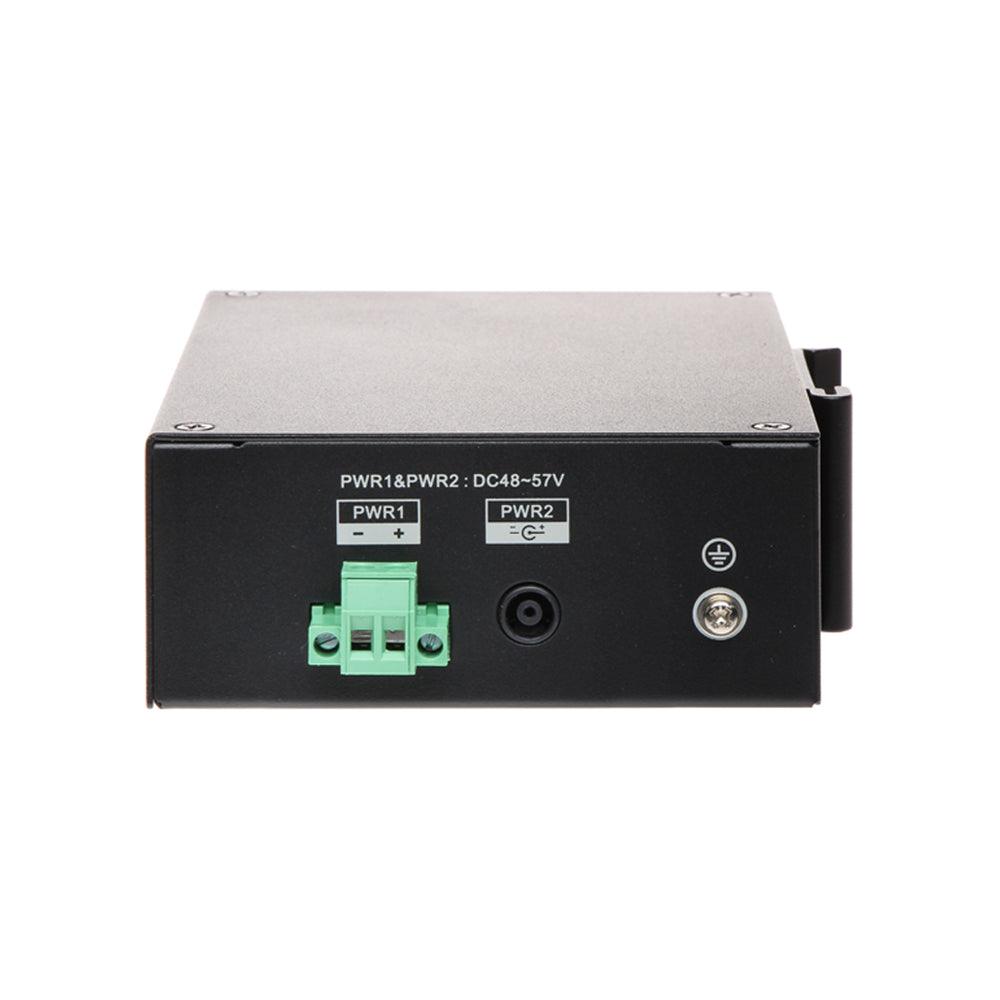

【INDUSTRIAL DESIGN】Support 2 channels DC48V-57V redundant power inputs.Industrial wide temperature design from -22 °F to +149 °F; DIN rail mount.
【MAIN APPLICATIONs】Upgrade analog camera system into IP surveillance system without replacing existing coaxial cables, or extend PoE transmission over ultra long distance through network cables, twisted pair calbes, or other two-pin cables.
This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.
