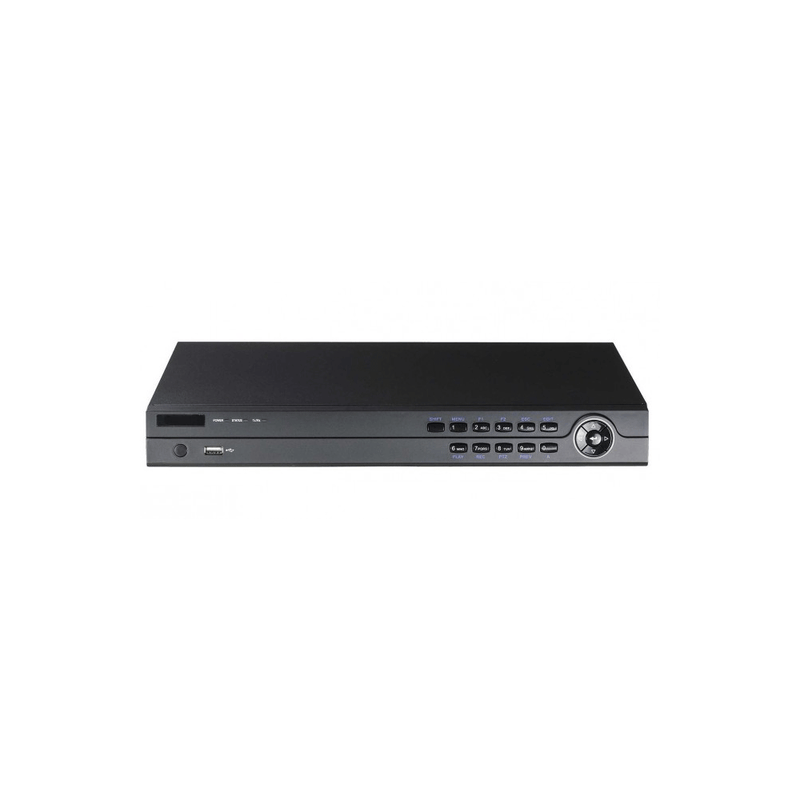

8ch H.265 4K DVR max 8MP recording max 2 HDDs compatible to HDTVI/HDCVI/AHD/CVBS signal input
• 4K 8MP HD Over Coax DVR
• TVI, CVI, AHD, CVBS, IP Camera Support
• 8CH Video, 4CH Audio HDTVI DVR
• H.265+, H.264+ Video CODEC
• 8MP @ 12FPS Recording Per Channel
• Long Distance Transmission Over RG-59 Cable
• 2 SATA Interface, Max 12TB HDD
• HDMI, VGA, Synchronous Outputs
• BNC Spot Output
• Guarding Expert Mobile App
MODEL | AR328-8 |
Video/Audio Input | |
Analog Video Input | 8 CH |
HDTVI Input | 8MP, 5MP, 4MP, 3MP, 1080P, 720P |
HDCVI Input | 4MP, 3MP, 1080P |
AHD Input | 4MP, 3MP, 1080P |
Audio Input | 4 CH, RCA |
Video Compression | H.265+, H.265, H.264+, H.264 |
Supported Camera Types | TVI, CVI, AHD, IP, CVBS |
Video/Audio Output | |
HDMI Output | 1 CH 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 |
VGA Output | 1 CH 1920x1080, 1280x1024, 1280x720, 1024x768 |
CVBS Output | 1 CH BNC 704x480 |
Encoding Resolution | 8MP, 5MP, 4MP, 3MP, 1080P, 720P, VGA, WD1, 4CIF, CIF |
Frame Rate | Main Stream: 8MP@12FPS, 5MP@20FPS, 4MP@30FPS, 3MP@30FPS, 1080P@30FPS |
Sub Stream: WD1, 4CIF, CIF@30FPS | |
Video Bitrate | 32 Kbps-10 Mbps |
Audio Output | 1 CH, RCA |
Synchronous Playback | 8 CH |
Dual Stream | Support |
Network Management | |
Remote Connections | 64 |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, HTTPS |
Hard Disk | |
SATA | 2 SATA Interfaces |
Capacity | Up To 6TB Capacity For Each Disk |
External Interface | |
Network Interface | 1 RJ-45 10/100 Mbps Self Adaptive |
USB Interface | 2 USB 2.0 |
Serial Interface | RS-485 |
General | |
Power Supply | 12VDC |
Consumption (Without HDD) | Approx 20W |
Working Temperature | 14°F ~ 120°F |
Chasis | 1U Chassis |
Dimension | Approx 15" x 12.6" x 2" |
Weight | Approx 15 LBS |
