$429.00 USD

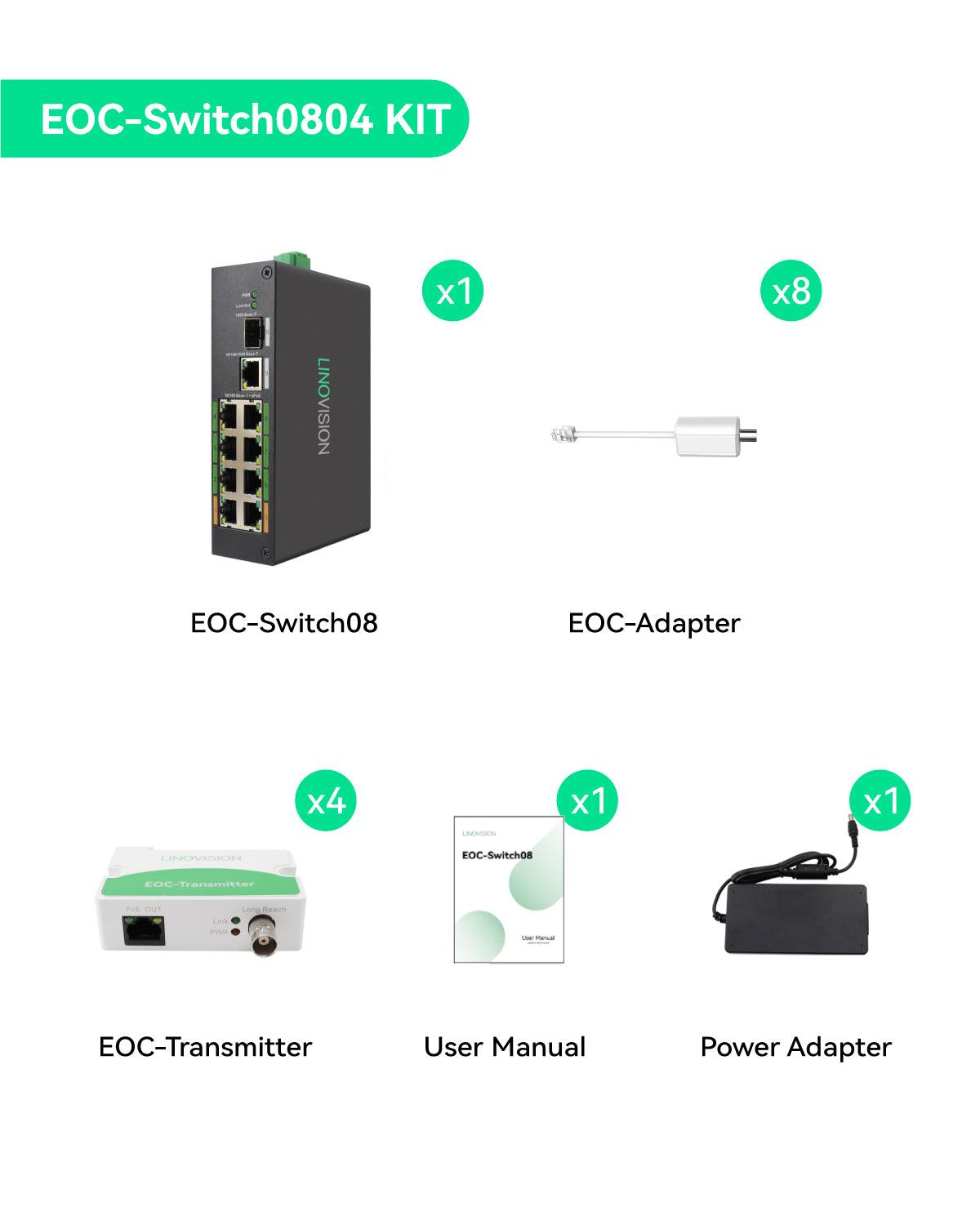

  • 8-PORT POE&EOC HYBRID SWITCH with 4 EOC-Transmitters - Provides 8 PoE ports with built-in EOC Receiver. Each port is auto-adaptive to PoE mode or EoC(Ethernet over Coax) mode and you can use it flexibly. For example, you can use 4 ports in EoC mode and another 4 ports in PoE mode.
  • POE OVER COAX - Transmits PoE power and data over the coaxial cable when bundling with EOC Transmitter, max 1000m distance. Suitable for upgrading analog camera system to IP surveillance system without replacing existing coaxial cables.
  • LONG REACH POE - Extends POE Transmission through regular network cables or twisted pair cables over 792m when bundling with EOC Transmitter. Suitable for monitoring scenarios such as underwater inspection system, seaside video monitoring, dam inspection system, mining facilities, underground pipe inspection systems, etc.
  • SIMPLIFIED WIRING - Instead of using several pairs of EOC Converters & 1 PoE switch, one EOC Switch can provide the same functions. It provides more-simplified cabling and more-stable performance. While upgrading your analog surveillance system you can add extra IP cameras with UTP (Cat5E/Cat6) cables.
  • 60W Hi-POE OUTPUT - Provides 8 10M/100Mbps PoE output ports. Port 1 and Port 5 comply with the Hi-PoE standard, max output power 60W. Port 2,3,4,6,7,8 ≤30W(IEEE802.3at). The total PoE power budget is 120W.
  • INDUSTRIAL DESIGN - Support 2 channel DC48-57V redundant power inputs. DIN rail mount.

Application

  • Used to upgrade analog system to IP surveillance system without replacing the existing coaxial cable.
  • Perfect for elevator application where  there are no ethernet cables and no camera powers, it can transmit POE power and IP data over coaxial or twist pair cables.
  • Working with POE-Splitter1224, it can transmit power + data for non-POE DC12V Devices.
  • Ethernet data extender up to 1,000 meters over coax cable or twist pair cables (Bandwidth will be lowered to 10Mbps over 300 meters).
Qty available: 44 SKU:EOC-Switch0804-Kit
