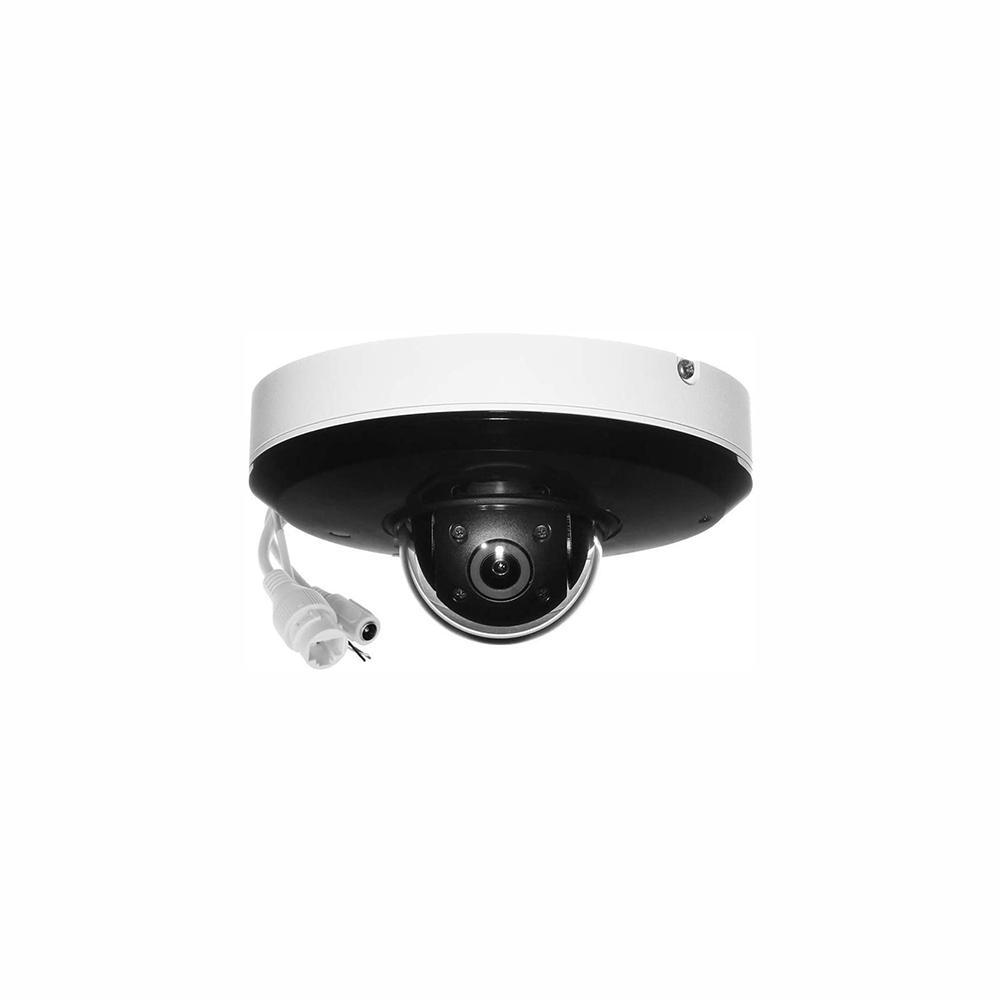

OEM IP Mini PTZ Camera 2MP 3X 2.7-8.1mm Lens Starlight IR PTZ Network Camera
Couldn't load pickup availability
Product description
Camera
Image Sensor: 1/2.8” STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V), 2 Megapixels
RAM/ROM: 512M/128M
Electronic Shutter Speed: 1/1s~1/30,000s
Scanning System: Progressive
Minimum Illumination: Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 15m (49.2ft)
IR On/Off Control: Auto/Manual
IR LEDs: 3
Lens
Focal Length: 2.7mm~8.1mm
Max. Aperture: F1.8
Angle of View:H: 105.6° ~ 35.2°
Optical Zoom: 3x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
PTZ
Pan/Tilt Range: Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed: Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed: Pan: 80° /s; Tilt: 40° /s
Presets: 300
PTZ Mode: 8 Tour
Speed Setup: Human-oriented focal Length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset/Tour if there is no command in the specified period
Protocol: DH-SD
Intelligence
Auto Tracking: N/A
IVS: Tripwire, Intrusion, Abandoned/Missing, Face Detection
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol:
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Smart Phone:IOS, Android
