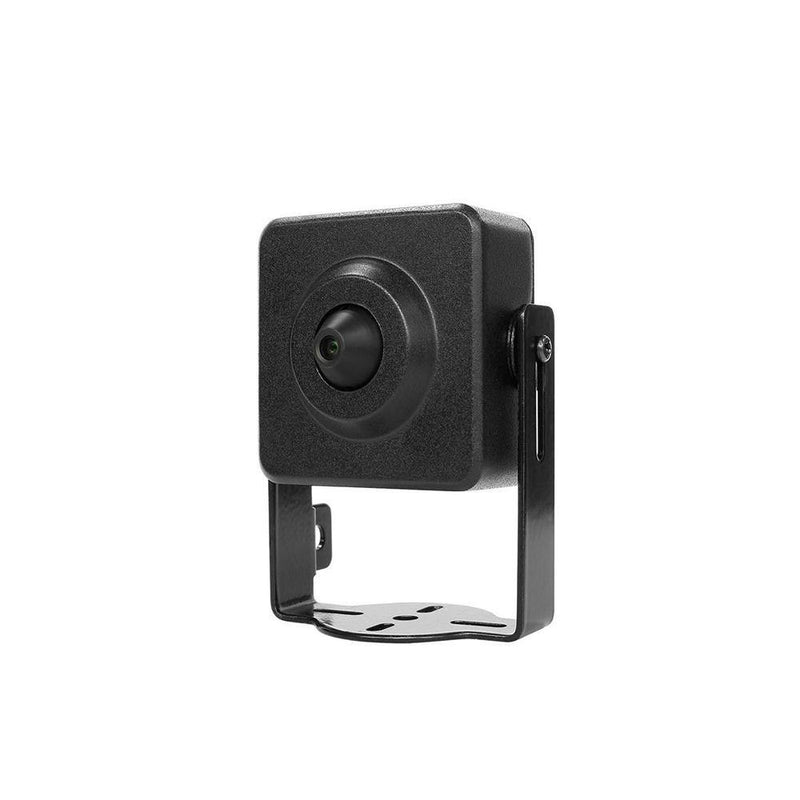

The smallest all-in-one pinhole camera 2.0MP H.265+ Pinhole IP Camera WDR (IPC402PH )
$89.00 USD
Couldn't load pickup availability
- 1/2.8" 2.0Mega progressive scan CMOS
- Up to 1920 x 1080@25 30fps
- Real-WDR 0.01Lux; B&W: 0.001Lux
- Support Alarm/audio
- Support Defog
- Support IOS and Android APP
- Support Face Detection, Intrusion Detection, Objet Missing/Left Detection and etc
- Spy camera Pin-hole IP Camera
| Camera | |
| Sensor | 1/2.8" 2.0Mega progressive scan CMOS |
| Min.illumination | Color: 0.01Lux @(F1.2,AGC ON), B&W: 0.001Lux @(F1.2,AGC ON) |
| Lens | 3.7mm@F2.8 |
| Electronic Shutter | Auto(1/25s ~ 1/10000s) |
| Day / Night | Auto/ Color/ B&W |
| DNR | 2D/ 3D DNR |
| Anti-Fog | Support (ON/OFF) |
| WDR | Real-WDR |
| Image Adjustment | Sharpness, Brightness, Saturation, Contrast Adjustable |
| Image Mode | Transparence / Reality |
| Color Mode | Standard/ Colorful |
| Distortion Correction | Support |
| Corridor Mode | Support |
| Encode | |
| Video Encoding | H.265+/H.265/ H.264High Profile/Main Profile Base Line Profile/ MJPEG |
| Max Resolution | Main Stream: 1920*1080@25/30fps |
| Triple Stream | Sub Stream: 704*576@25/30fps, Third Stream: 1280*720@25fps |
| Stream Mode | Triple Stream |
| Video Bitrate Control | Support VBR/ CBR |
| Video Bitrate Range | 32Kbps~8MKbps |
| Interface | |

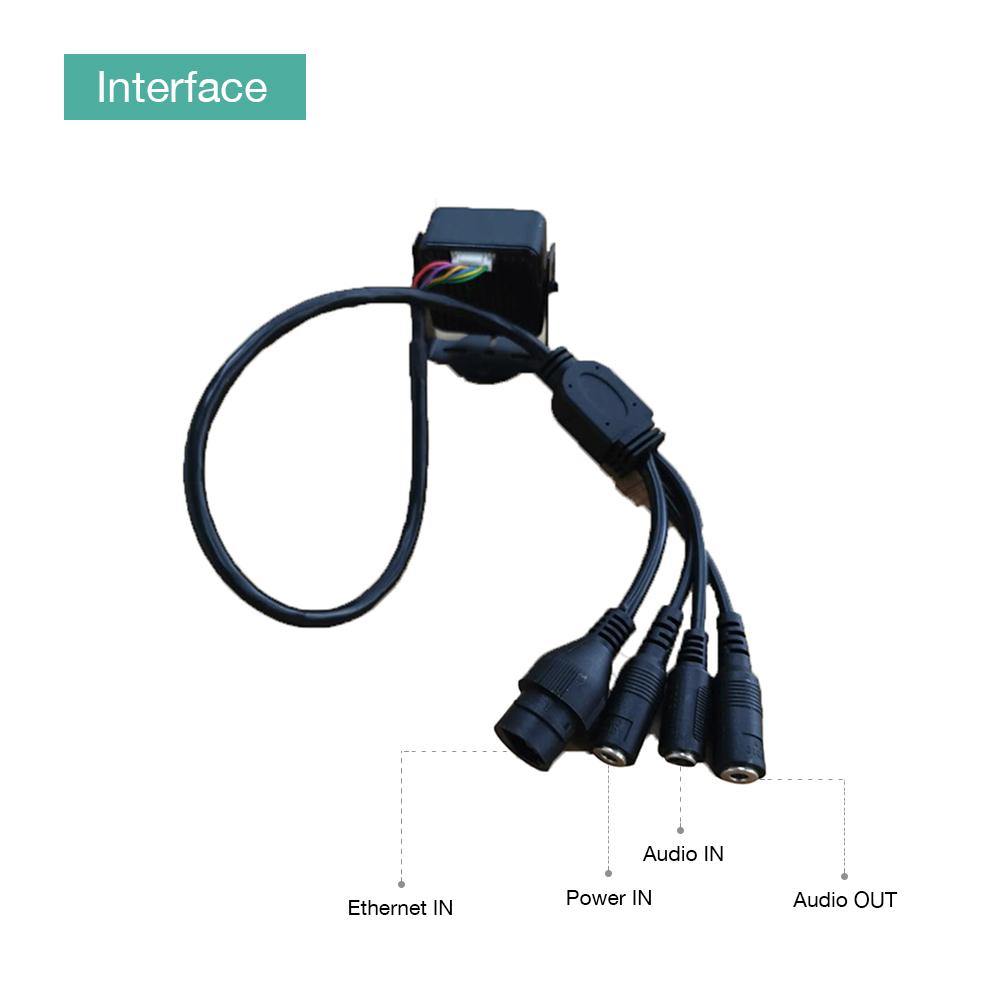

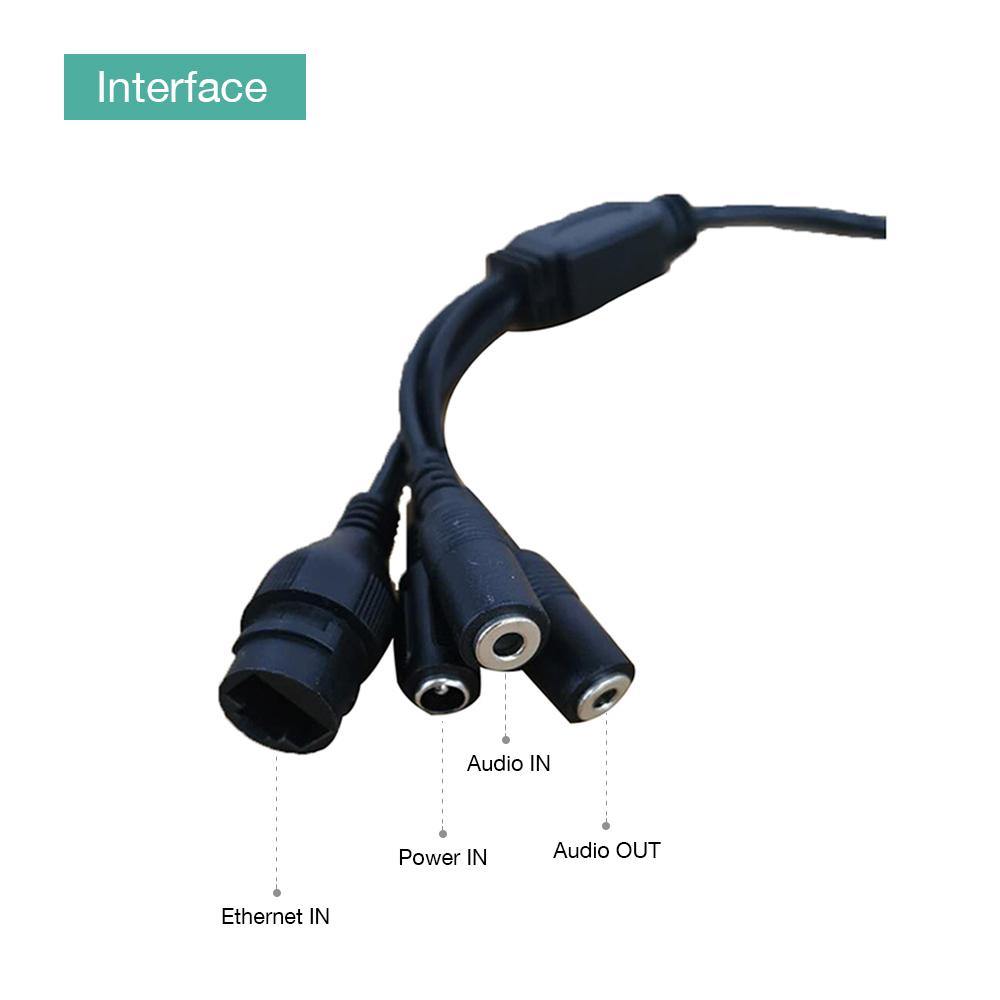

| Audio | One audio in (line in), One audio out (line out) |
| Reset | External Reset Button |
| Network Port | 1 RJ45 10M/100M Ethernet interface |
| Function | |
| Motion Detection | Multiple Detection Zones, Variable Sensitivity Levels |
| Corridor Mode | Support |
| ROI | Support |
| Privacy Masking | 4 Zones for Privacy Masking |
| Snapshot | Support JPEG, Resolution is the max encoding resolution |
| Security Features | Support password, watermarking |
| Text Overlay | Support(Channel name, Date&Time) |
| Alarm | Support network anomaly, mask alarm and etc. |
| Intelligent Function | Face Detection, Intrusion Detection, Objet Missing/Left Detection, Through Fence Detection, Retrograde Detection, Loitering Detection, Density Detection, Counting, Color Cast, Car License Detection, Out of Focus Detection, Camera Movement Detection. |
| Mobile Phone APP | Support IOS and Android |
| Network Protocol | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP |
| Protocol | ONVIF/CGI/GB28181 |
| General Parameter | |
| Power Supply | DC12V(±25%) |
| Working Temperature | -40℉~＋158℉/-40℃~70℃ (*Start up should be done at above -40℃/-40℉) |
| Humidity | 10％-~90％ |
| Power | 2W MAX |

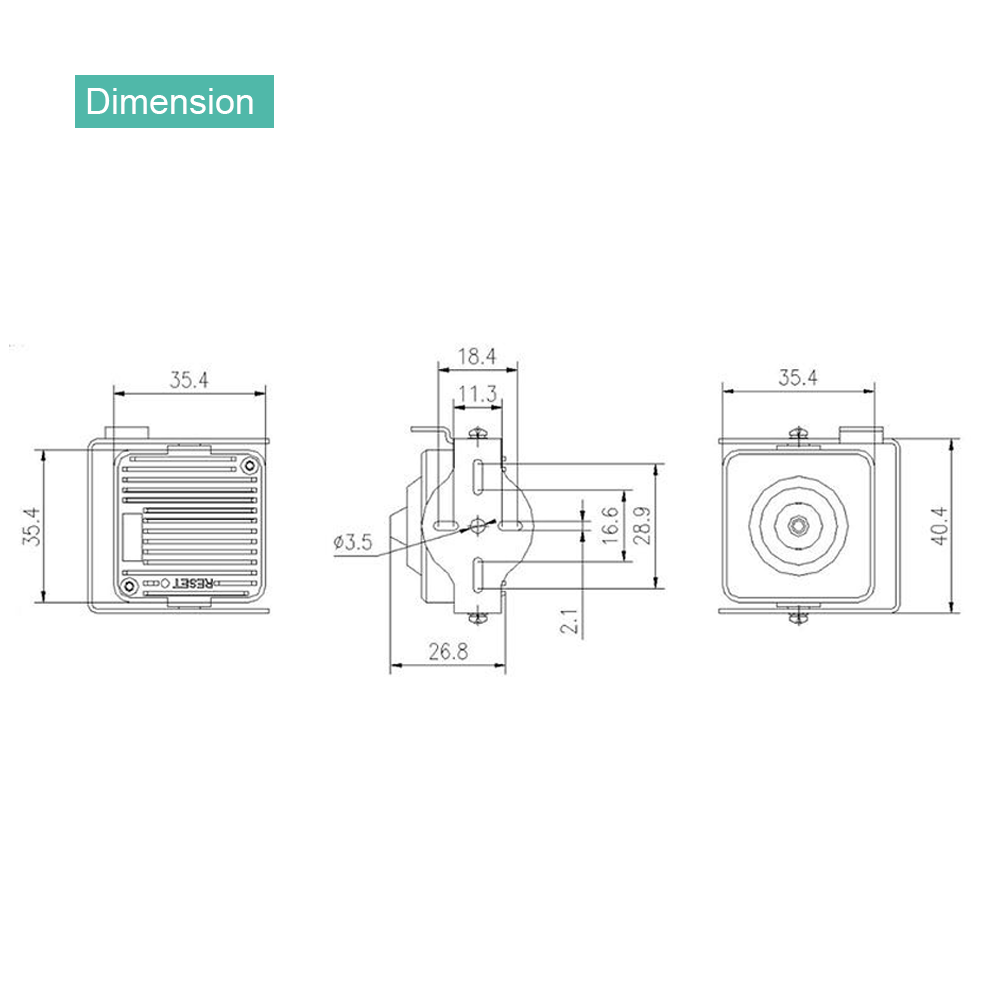

| Size | 35.4*35.4*26.8mm (14*14*10.5in ) |
| Weight | 78g(0.17lb) |
