$229.00 USD

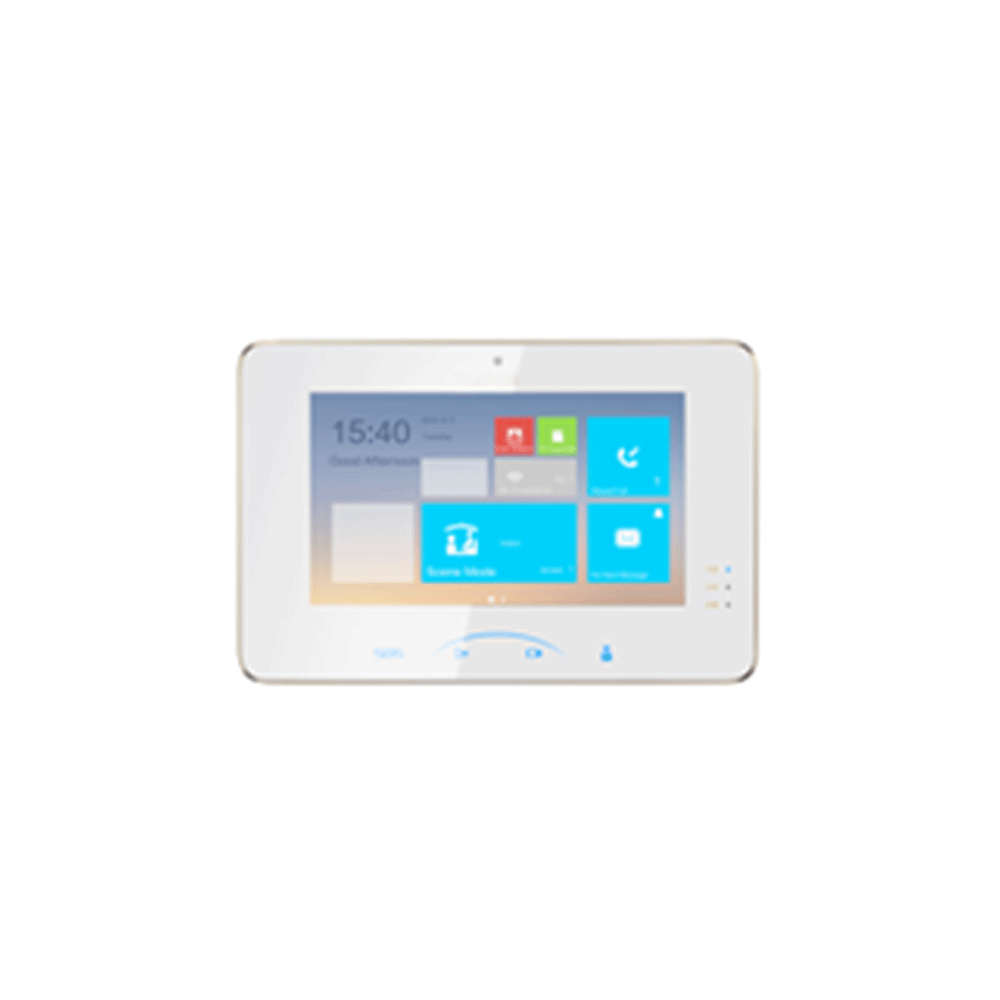

  • 7-inch HD touch screen with resolution 1024 x 600
  • Working together with Intercom-Door01 station.
  • 8-ch alarm zones
  • Panic call supported
  • View video from door station and HINO IP cameras.
  • Remote control magnetic door
  • Recording visitor video messages on local TF card
  • Support one master and 5 slave stations
  • Hikvision OEM IP Video Intercom
System Parameters
Processor: High-Performance Embedded SOC Processor
Operation System: Embedded Linux Operation System
Camera Parameters
Image Sensor: 1/3" Progressive Scan CMOS, Color, Day/Night
Light sensitivity: Low Illumination
Lens: Pinhole, f3.47mm,F2.5
Field of view: 80° (Horizontal), 44° (Vertical)
Field of view adjustment: -50° to 50°
Video Parameters
Video streaming: Dual Stream
Video Compression Standard: H.264
Resolution: Main Stream: 1280 × 720
Sub-Stream: 640 x 480
Video frame rate: PAL: 25 fps, NTSC: 30 fps
Video bit rate: Main Stream: 32 Kbps to 4096 Kbps
Sub-Stream: 32 Kbps to 2048 Kbps
Anti-flicker frequency: 50 Hz, 60 Hz
Wide dynamic range: Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF
Image settings: Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,OSD Display
Audio Parameters
Audio streaming: Two-Way, Full Duplex
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Light Supplement
Light Supplement Mode: IR Supplement, IR Distance: 5 Meters
Wavelength: 940 nm
Control: Auto ON/OFF, Time ON/OFF
Alarm Parameters
Alarm Input: Door Magnetic Alarm
Event actions
Event: Motion Detection, Picture Capturing, Call Button Pressing
File uploading: FTP
Email notification: Login Succeeded via Software or Web
Device Interfaces
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
I/O Input: 1
I/O Output: 1 Relay Output
General
Material: Wall Mounting Shield: Zinc Alloy
Front Panel: Zinc Alloy
Rear Panel: Aluminum Alloy
Wall Mounting Plate: Secc
Impact protection: IK 9
Power Supply: PoE (Power over Ethernet) 12 VDC
Power Consumption: ≤12 W
Working Temperature: -30° C to +50° C (-22° F to 122° F)
Working Humidity: 10% to 90%
IP Protection Level: IP66
Dimensions (L x W x H): 161.9 mm x 74.1 mm x 53.2 mm (6.37” x 2.92” x 2.09")
Weight: 773g (1.70lb)
Qty available: -3 SKU:Intercom-Monitor01
